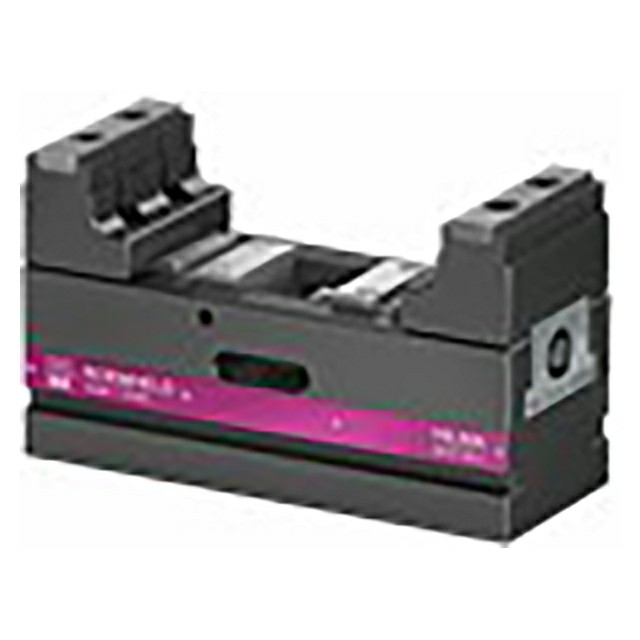

Roemheld CLRH-9-4581-0301 | 20mm Stroke Concentric Manual Vise

ROEMHELD MCP40Z 5-Axis Concentric Manual Vises

Concentric Clamping

Mechanical Operation

The Z-series version of the MCP40 vise is dimensionally similar to the fixed-jaw version, but incorporates our precision self-centering mechanism. Concentric vises have two moving jaws that provide clamping at the exact center of the rotary table. The MC40PZ vise is extremely compact yet quite powerful. Like all of our 5-axis vises, this vise has optimal features to allow unrestricted tool access for multiple-side machining. 40mm wide x 110mm long , with 1700 lbs maximum clamping force. Made in Germany. The MCP series is a further refinement of the high-precision MC vise series. These new vises combine a very compact, fully enclosed design with a patented sliding-jaw segment design. Thanks to the adjusting spindle arranged in the upper part of the housing, deformation in the base during clamping is reduced to a minimum, providing high rigidity of the entire workholding system.

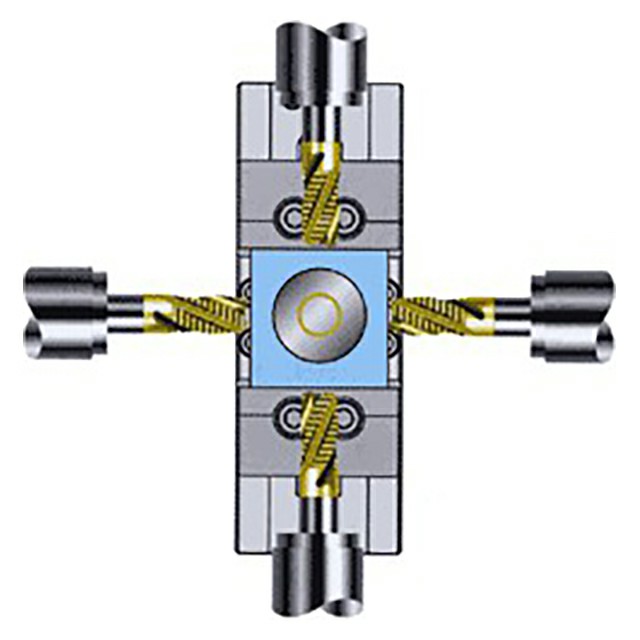

Application Information

Unique design allows clear tool access to five-out-of-six workpiece sides.

Mounting on a Quintus 1 Riser

Due to its small size, the MC40 vise must first be mounted on a Quintus Vise Adaptor Plate, which is then mounted on the Quintus 1 riser. To locate the vise on the adaptor plate, use two Fixture Locating Pins, a round pin for zero-point centering and a diamond pin for single-axis centering. To fasten the vise, use six M6 x 30mm socket-head cap screws inserted through the plate from below. Next, install a Quintus 1 pull-down bolt in the adaptor plate's M10 bottom center hole. To locate the adaptor plate, the Quintus 1 riser utilizes its two integral locating pins, a round pin for zero-point centering and a diamond pin for single-axis centering, which fit into the two 10mm locating holes underneath the plate. Turning the Quintus mechanism exerts 2700 lbs of force on the pull-down bolt. See Related Products below for mounting accessories.

Mounting on a Vise Adaptor Plate

Vise Adaptor Plate mounted directly on a rotary table

To locate the vise, use two Fixture Locating Pins, a round pin for zero-point centering and a diamond pin for single-axis centering. To fasten the vise, use six M6 x 30mm socket-head cap screws inserted through the plate from below. See Related Products below for mounting accessories.

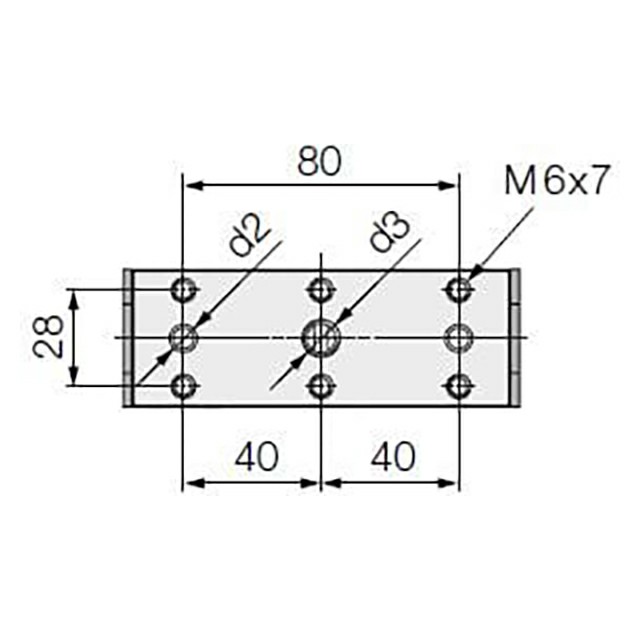

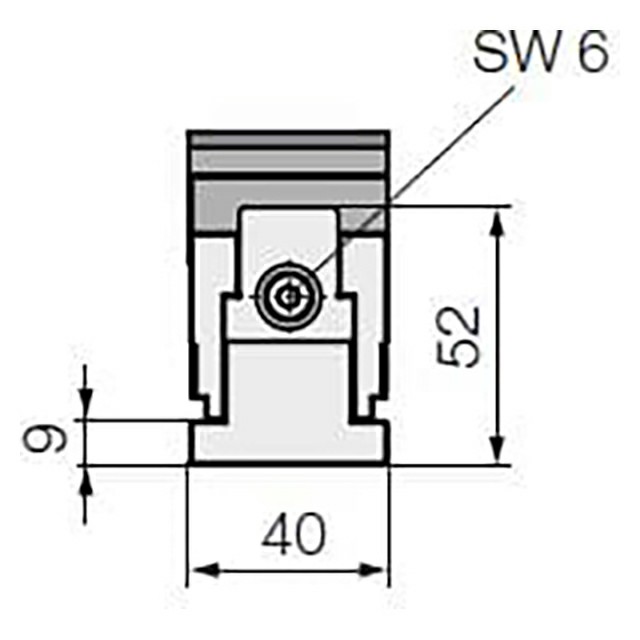

Material

Parts Specification
