Roemheld CLRH-9-4583-0101 | 60mm Jaw Width Manual Vise

ROEMHELD MCP60 5-Axis Manual Vises

Fixed Jaw

Mechanical Operation

The MCP60 vise is the most popular 5-axis-vise size due to its compactness and high clamping force. Like all of our 5-axis vises, this vise has optimal features to allow unrestricted tool access for multiple-side machining. The standard fixed-jaw design has one fixed jaw, and one moving jaw that clamps against it. 60mm wide x 170mm long, with 3400 lbs maximum clamping force. Made in Germany. The MCP series is a further refinement of our high-precision MC vise series. These new vises combine a very compact, fully enclosed design with a patented sliding-jaw segment design. Thanks to the adjusting spindle arranged in the upper part of the housing, deformation in the base during clamping is reduced to a minimum, providing high rigidity of the entire workholding system.

Application Information

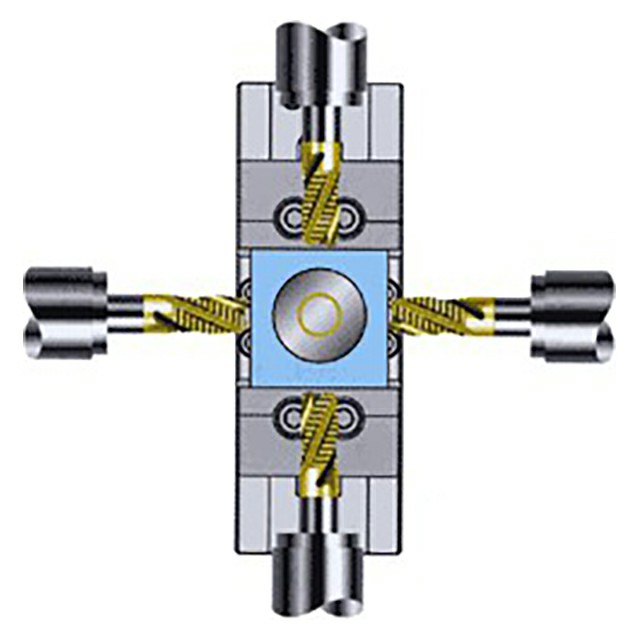

Unique design allows clear tool access to five-out-of-six workpiece sides.

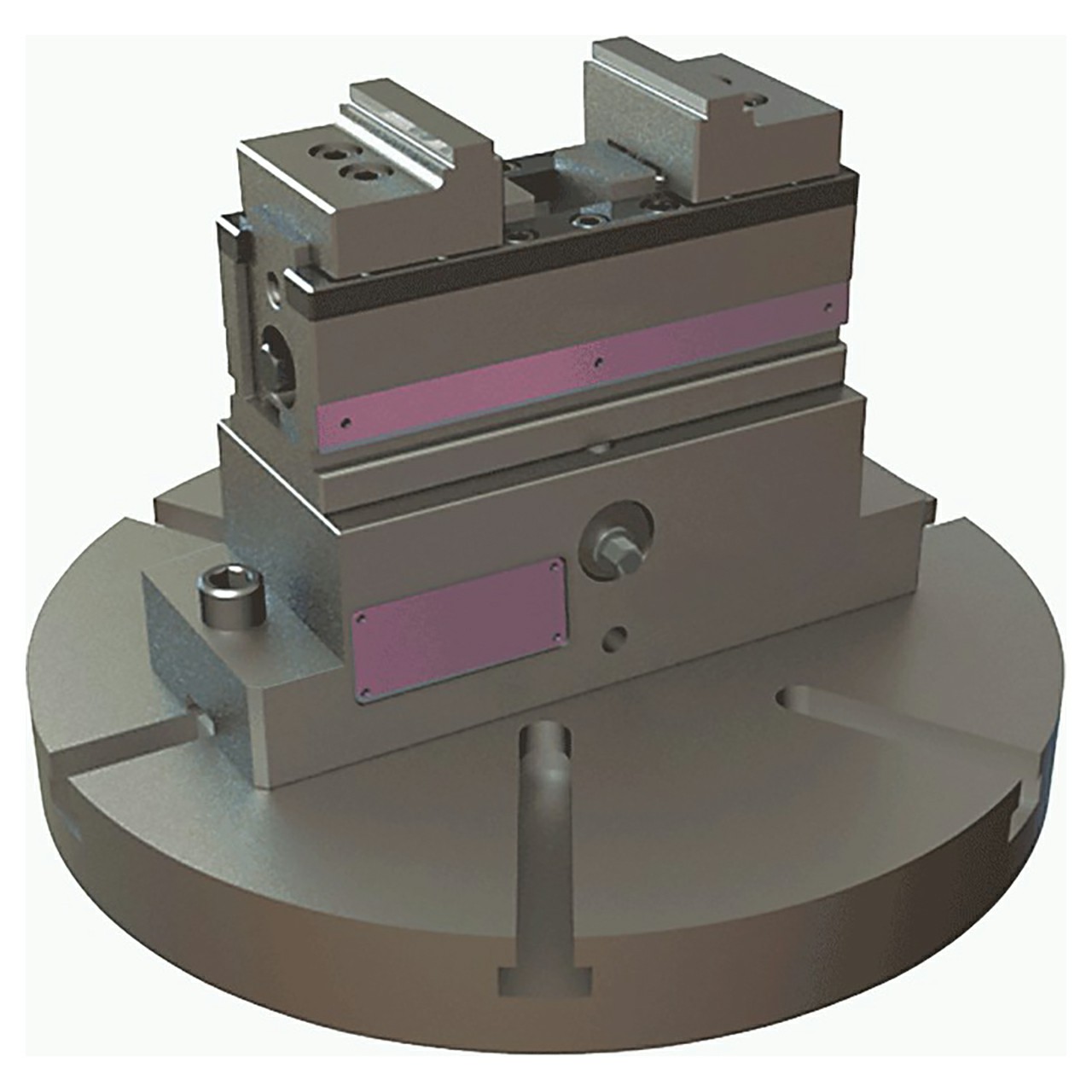

Mounting on a Quintus 1 Riser

Before using the vise, install a Quintus 1 pull-down bolt in the vise's M10 bottom center hole. To locate the vise, the Quintus 1 riser utilizes its two integral locating pins, a round pin for zero-point centering and a diamond pin for single-axis centering, which fit into the two 10mm locating holes underneath the vise. Turning the Quintus mechanism exerts 2700 lbs of force on the pull-down bolt.

Mounting on a Vise Adaptor Plate

Vise Adaptor Plate mounted directly on a rotary table. To locate the vise, use two Fixture Locating Pins, a round pin for zero-point centering and a diamond pin for single-axis centering. To fasten the vise, use four M8 x 35mm socket-head cap screws inserted through the plate from below.

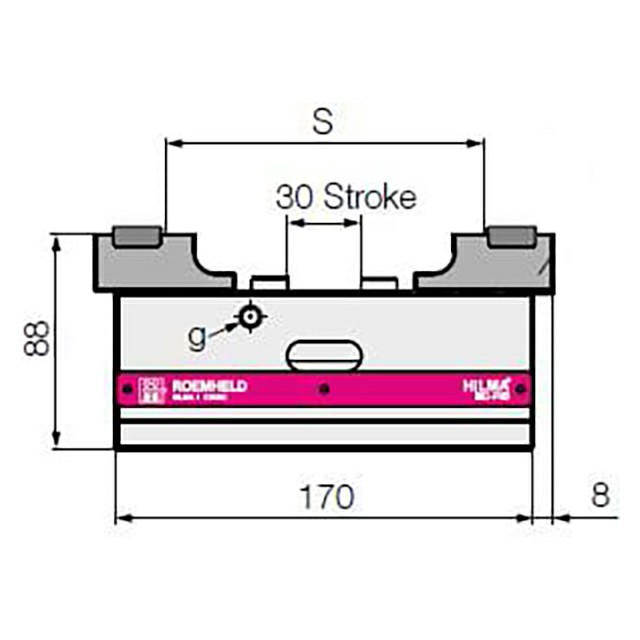

Material

Parts Specification
