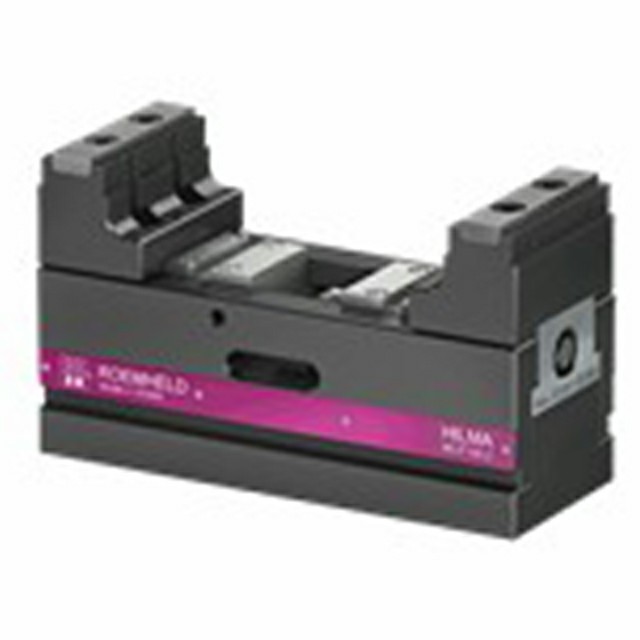

Roemheld CLRH-9-4583-0301 | 30mm Stroke Concentric Manual Vise

ROEMHELD MCP60Z 5-Axis Concentric Manual Vises

Concentric Clamping

Mechanical Operation

The Z-series version of the MCP60 vise is dimensionally similar to the fixed jaw version, but incorporates our precision self-centering mechanism. Concentric vises have two moving jaws that provide clamping at the exact center of the rotary table. The MC60P Z is our most popular 5-axis-vise size due to its compactness and high clamping force. Like all of our 5-axis vises, this vise has optimal features to allow unrestricted tool access for multiple-side machining. Finest-quality construction with a special cast steel base for excellent rigidity, dimensional stability, and durability. All sides are hardened and ground, providing a basis for maximum precision. Made in Germany. The MCP series is a further refinement of the high-precision MC vise series. These new vises combine a very compact, fully enclosed design with a patented sliding-jaw segment design. Thanks to the adjusting spindle arranged in the upper part of the housing, deformation in the base during clamping is reduced to a minimum, providing high rigidity of the entire workholding system.

Application Information

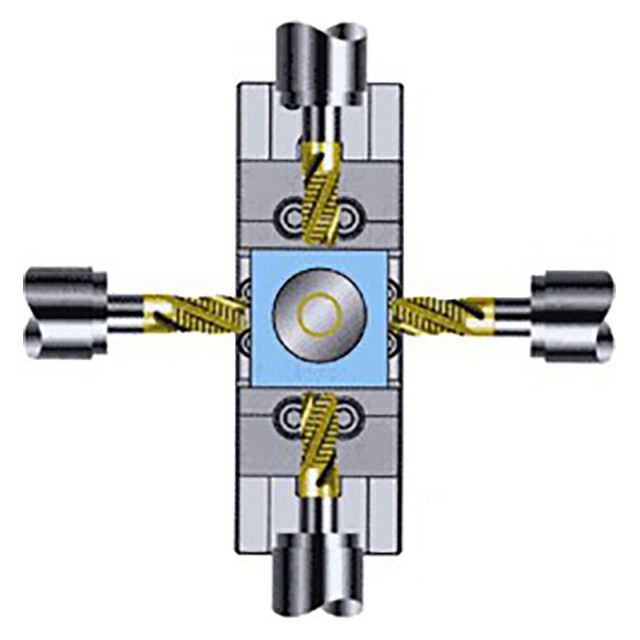

Unique design allows clear tool access to five-out-of-six workpiece sides.

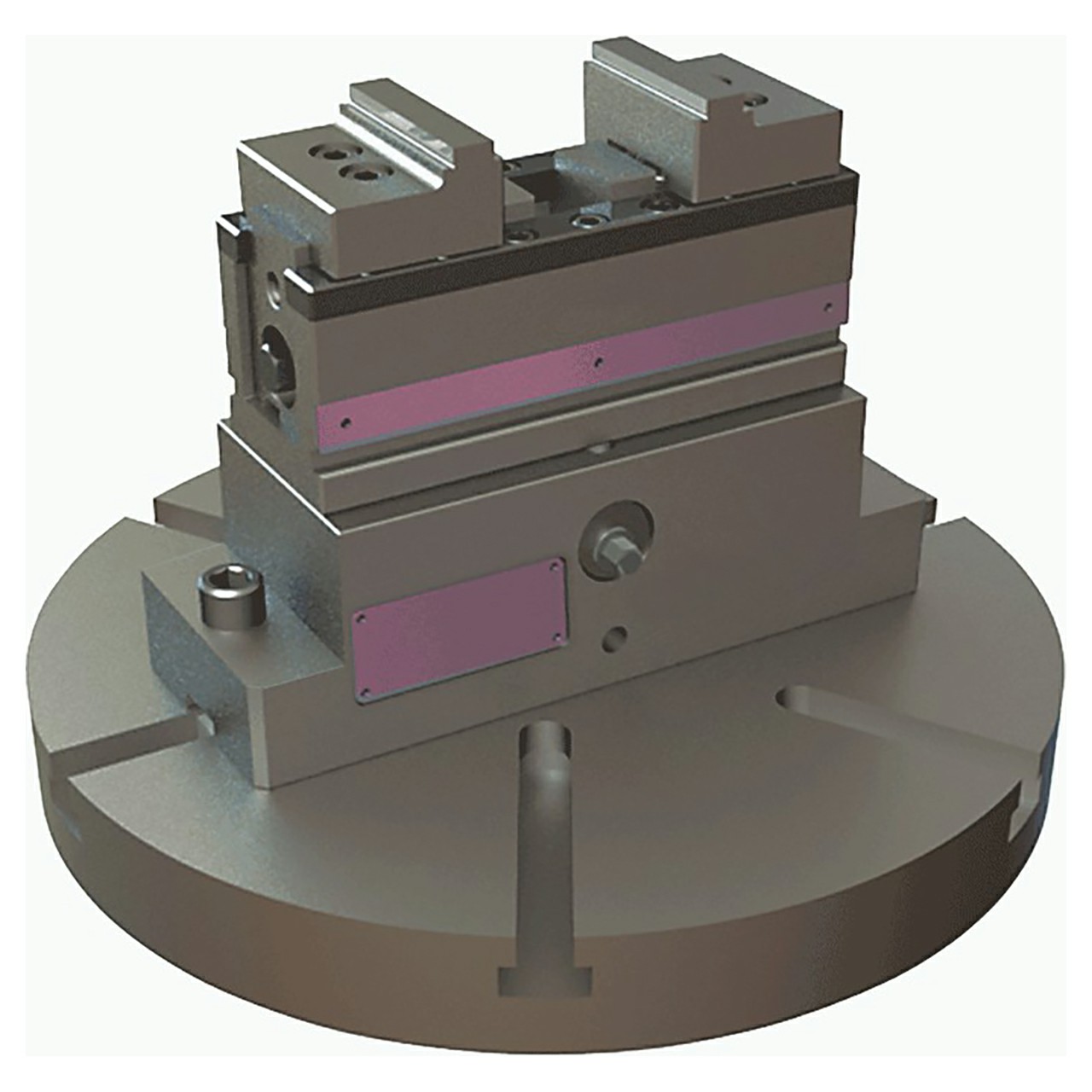

Mounting on a Quintus 1 Riser

To locate the vise, the Quintus 1 riser utilizes its two integral locating pins, a round pin for zero-point centering and a diamond pin for single-axis centering, which fit into the two 10mm locating holes underneath the vise. Turning the Quintus mechanism exerts 2700 lbs of force on the pull-down bolt.

Mounting on a Vise Adaptor Plate or Riser Block

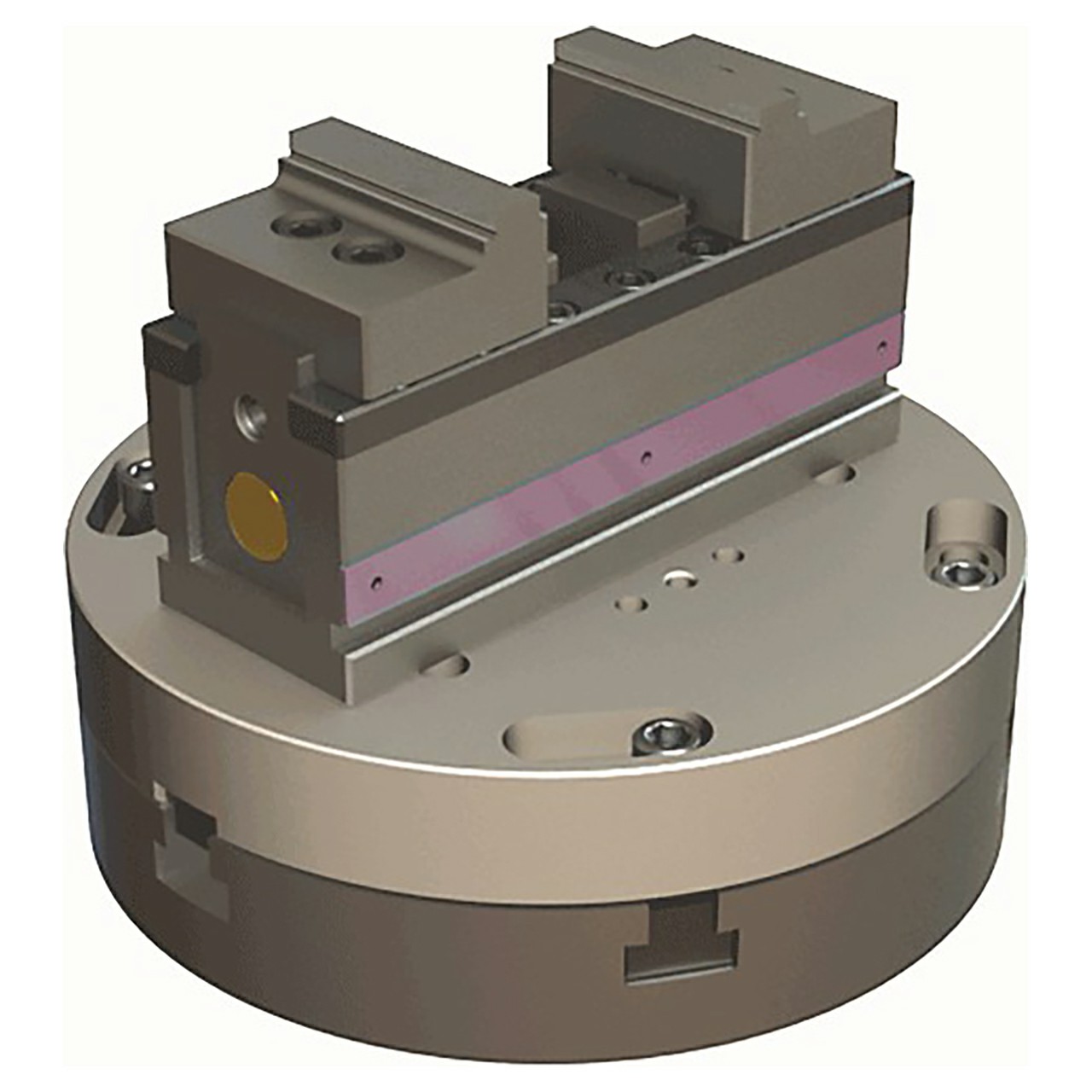

Vise Adaptor Plate mounted directly on a rotary table

To locate the vise, use two Fixture Locating Pins, a round pin for zero-point centering and a diamond pin for single-axis centering. To fasten the vise, use four M8 x 35mm socket-head cap screws inserted through the plate from below.

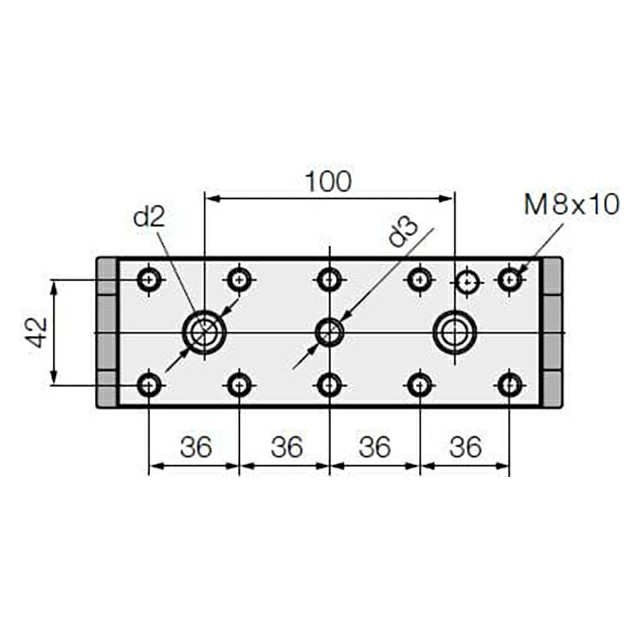

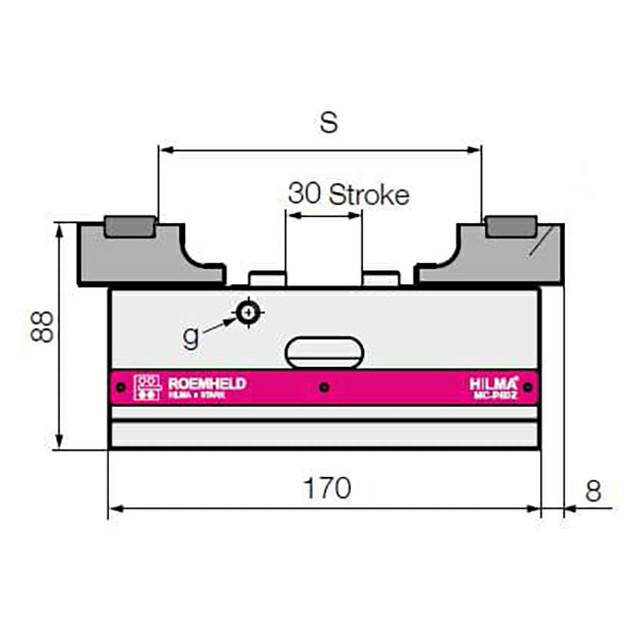

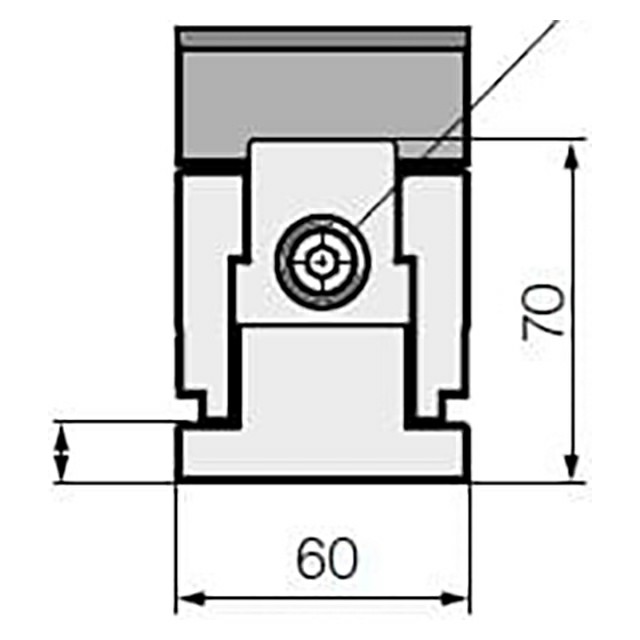

Material
