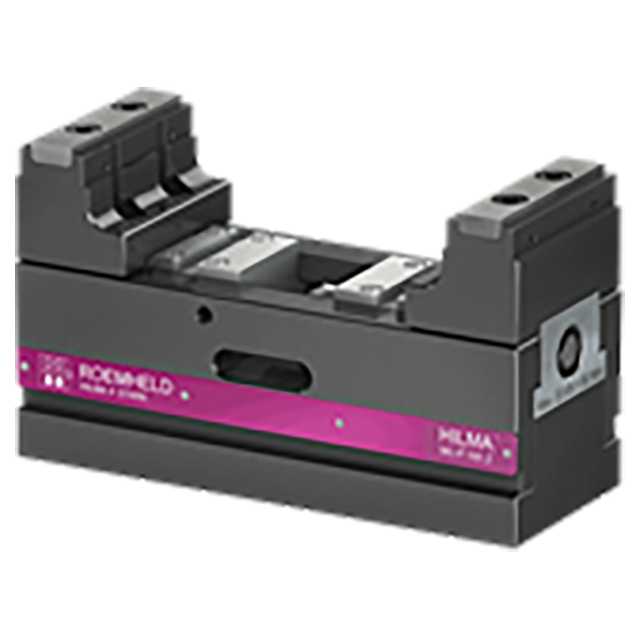

Roemheld CLRH-9-4585-0401 | 100mm Width x 50mm Stoke Concentric Hydraulic Vise

MCP100 5-Axis Manual Vises (100mm)

Concentric Clamping

Hydraulic Operation

Double Acting

4600 psi max at clamping port

725 psi max at unclamping port

The Z-series version of the MCP100 vise is dimensionally similar, but incorporates the precision self-centering mechanism. Concentric vises have two moving jaws that provide clamping at the exact center of the rotary table. The MCP100 Z vise is large enough to handle a wide range of workpiece sizes. Like all of the 5-axis vises, this vise has optimal features to allow unrestricted tool access for multiple-side machining. Finest-quality construction with a special cast steel base for excellent rigidity, dimensional stability, and durability. All sides are hardened and ground, providing a basis for maximum precision. Made in Germany.

The MCP series is a further refinement of the high-precision MC vise series. These new vises combine a very compact, fully enclosed design with a patented sliding-jaw segment design. Thanks to the adjusting spindle arranged in the upper part of the housing, deformation in the base during clamping is reduced to a minimum, providing high rigidity of the entire workholding system. The patented segment design ensures a high degree of precision and stability, reducing guiding clearance to nearly zero.

Application Information

Unique design allows clear tool access to five-out-of-six workpiece sides.

Mounting on a Quintus 2 Riser

Before using the vise, install both Quintus 2 pull-down bolts in the vise's M10 counterbored bottom locating holes (order separately – see Dimensions page for part number). To locate and clamp the vise, the Quintus 2 riser utilizes these two pull-down bolts – #1 with zero-point centering, #2 with single-axis centering. First, turn Quintus mechanism #1, then turn Quintus mechanism #2. Each exerts 4500 lbs of force on its pull-down bolt.

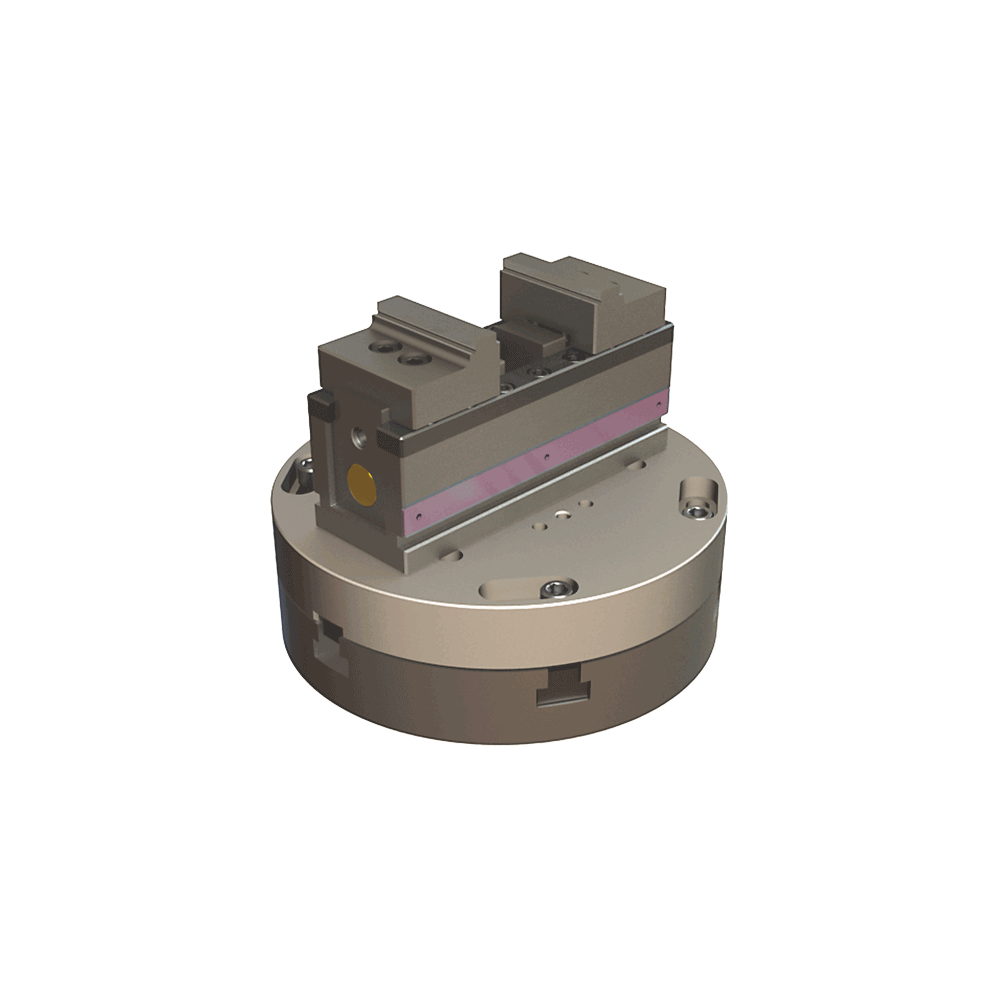

Mounting on a Vise Adaptor Plate or Riser Block

To locate the vise, use two Fixture Locating Pins, a round pin for zero-point centering and a diamond pin for single-axis centering. To fasten the vise, use eight M10 x 35mm socket-head cap screws inserted through the plate from below.

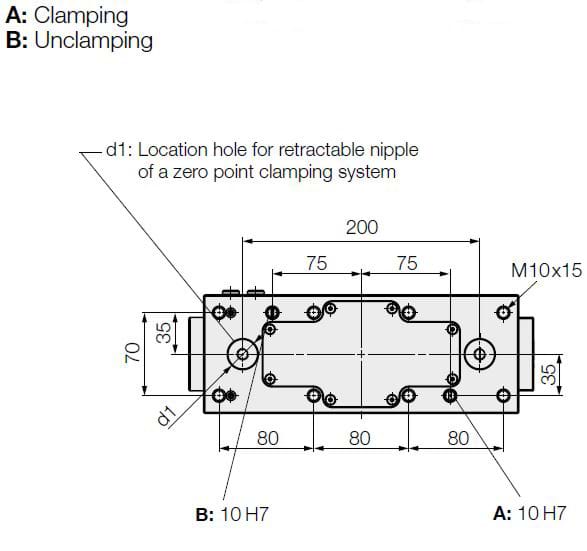

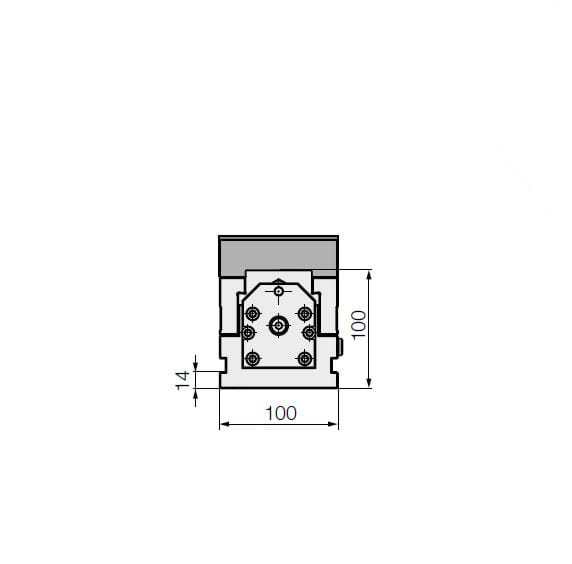

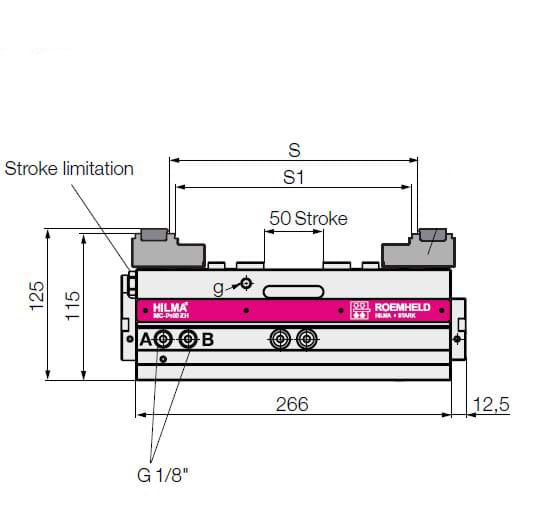

Material

Parts Specification
