Roemheld CLRH-9-6155-0102-VSA | Zero-Point Quick-Change Riser

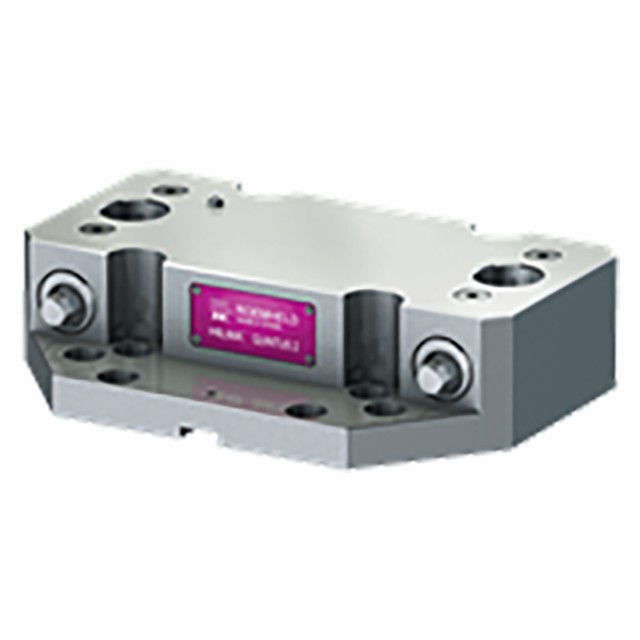

ROEMHELD Quintus 2 Zero-Point Quick-Change Riser

Quintus Quick-Change Risers provide accurate zero-point location and secure clamping, along with quick-change capability and workpiece elevation for improved spindle access – all in one compact unit. To locate and clamp a fixture, the Quintus 2 riser utilizes two pull-down bolts – one with zero-point centering, the other with single-axis centering – providing 2 x 4500 lbs of pull-down force. Made in Germany.

Application Information

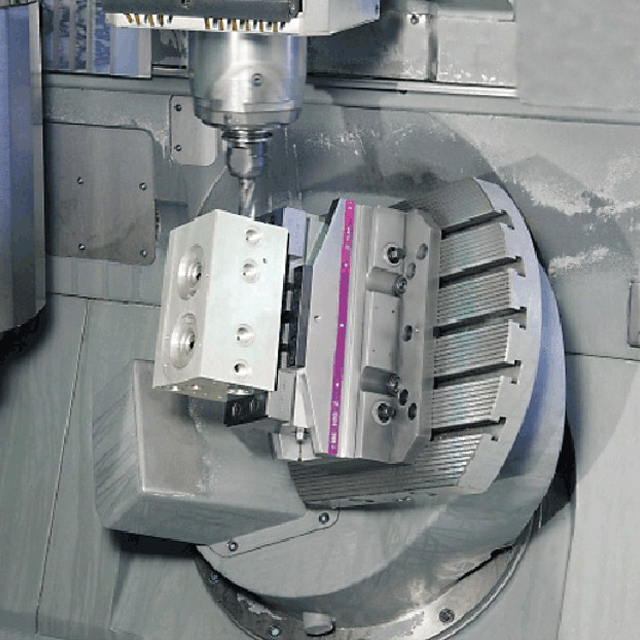

Quintus 2 Quick-Change Riser used with a Self-Centering 5-Axis Vise

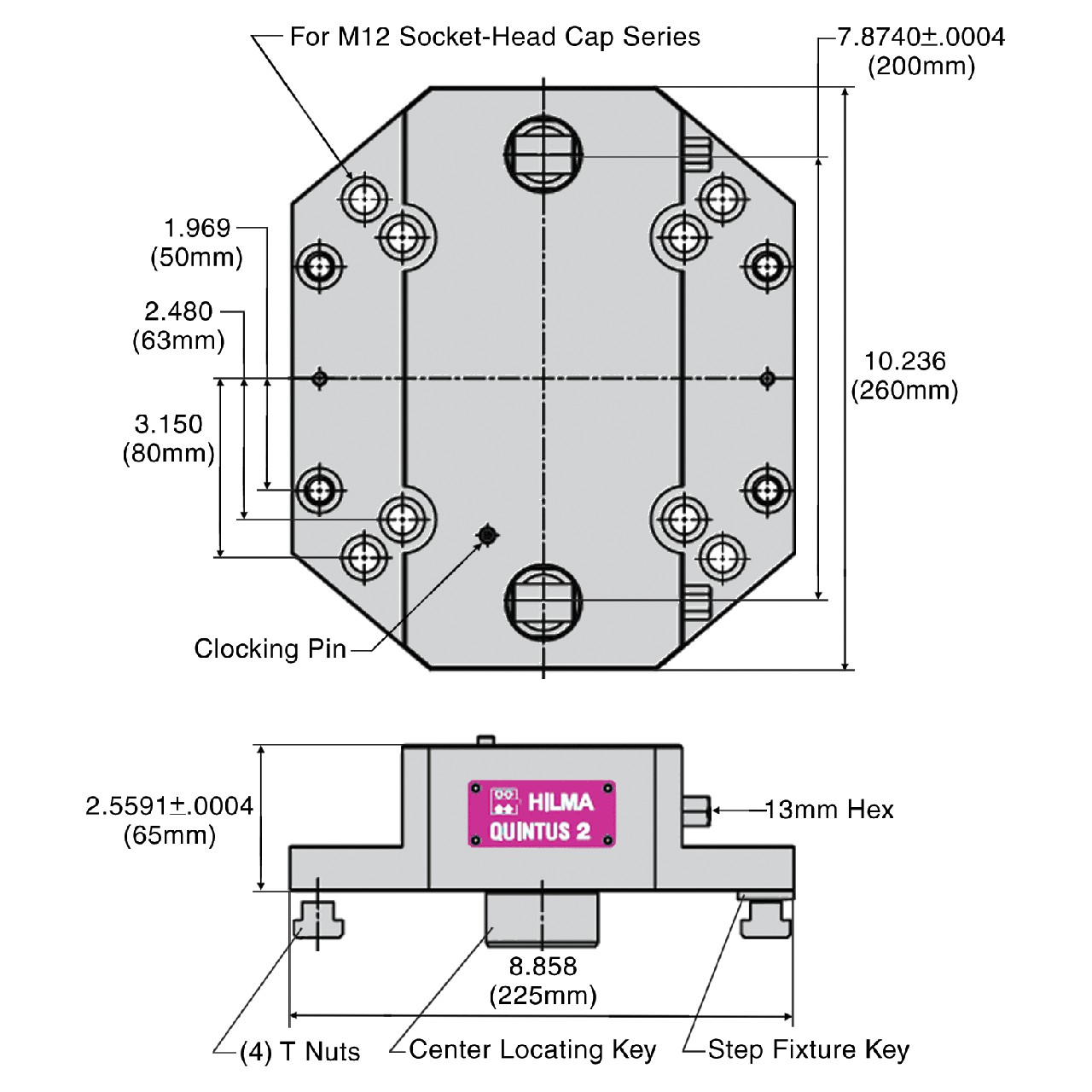

Mounting on a Machine Table

To locate the Quintus riser at the exact center of a rotary table, first install a Center Locating Key that matches the table's center-hole diameter in the riser's 25mm bottom center hole. For exact radial orientation, install a Step Fixture Key that matches the table's slot width in the riser's 20mm bottom slot. Fasten the riser to the machine table with four M12 socket-head cap screws (CLM-12x25-SHCS) and T Nuts to match the table slots.

Material

Parts Specification
