- The Royal Quick-Change Tool System provides a fast method for changing tools on a Bridgeport-style mill – once the R8 body is installed in the machine spindle, tools can be changed in seconds
- One hand operation – simply depress the brass locking button and rotate collar to the locked-open position. When a new tool is inserted, it depresses a spring-loaded pin, snapping the collar back into the locked-closed position
- Very accurate – total system runout can be less than 0.0005" TIR under the right circumstances
- Short overhang (1 1/8") and two positive-drive keys enable many common milling and drilling operations to be easily performed
Product Specifications

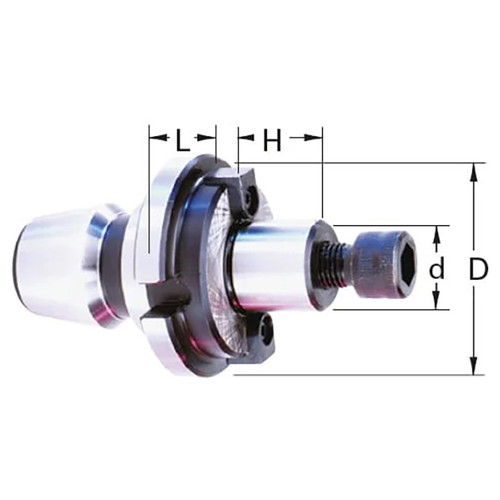

| Shell Mill Tool Holder Dimension d (Inch) | 3/4" |
| Shell Mill Tool Holder Dimension D (Inch) | 1 11/16" |
| Shell Mill Tool Holder Dimension L (Inch) | 9/16" |
| Shell Mill Tool Holder Dimension H (Inch) | 23/32" |
