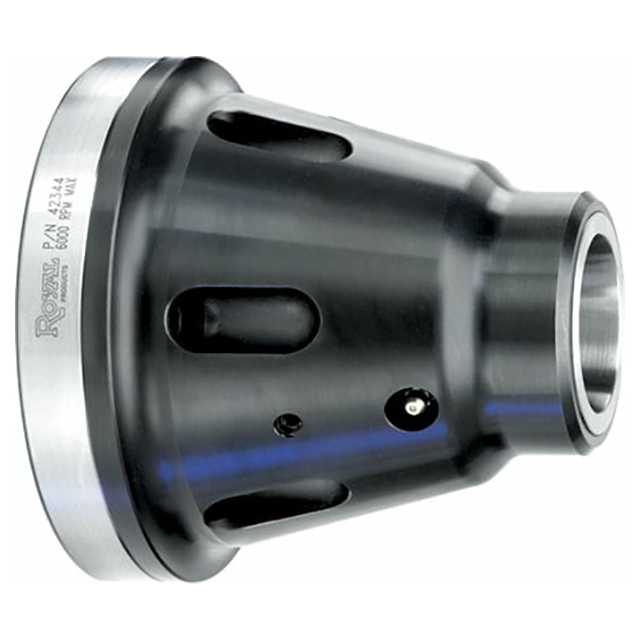

Royal Low-Profile Accu-Length Cnc Collet Chucks
- Simple Design -
- Spindle Bearing Protection -
- Bolt & Go - Exclusive Bolt & Go mounting feature is standard on all Royal Low-Profile Collet Chuck models. Bolt & Go enables chucks to be mounted very quickly and ensures maximum accuracy and rigidity. Click here for additional information
- Completely Sealed - Lubricated for life, these chucks incorporate multiple O-ring seals to keep contaminants out and prevent chip pack-up on bore-thru applications
- Dead-Length Operation - Royal Quick-Grip Accu-Length CNC Collet Chucks incorporate dead-length operation to eliminate part pullback. With this design, the collet is held stationary in the chuck body and a tapered sleeve pushes forward to compress it, resulting in precise z-axis workpiece positioning
- Specials - If you have a special application that goes beyond the scope of standard line.
- Outstanding Rigidity - All Royal Accu-Length Collet Chucks have been optimized for maximum rigidity, and all components hardened for strength and durability
- Low-Profile - All external dimensions have been optimized to provide maximum tool clearance
- High Accuracy - All Royal Accu-Length CNC Collet Chucks guaranteed to run within 0.0002"" TIR
- Wide Range - Royal manufactures a wide range of Accu-Length Collet Chucks to fit all popular spindle noses and collet styles
- Easy Installation - All Royal Low-Profile Accu-Length Collet Chucks include a collet wrench, mounting hardware, mounting wrenches, and a custom-machined drawtube connector for hassle-free installation.AdvantagesThese chucks utilize spring-type collets and therefore do not provide the parallel grip functionality or wide gripping range of Quick-Grip models
- Dead-length operation – sleeve pushes forward to compress the collet, providing precise z-axis part positioning
- Low-profile nose offers outstanding tool clearance
Product Specifications
| Collet Chuck Weight (lbs) | 17 |
| Spindle Type | 110mm |
| Collet Type | 3J |
| Low-Profile Capacity (Inch) | 1 3/4"" |
| (A) Overall Length | 5.42 |
| (B) Nose Diameter (Inch) | 3.25" |
| (C) Nose Length | 1.03 |
| (D) Body Diameter | 4.06 |
| (E) Flange Diameter | 5.20 |
| Max Drawbar Force (lbs) | 5,400 |
| Max Clamping Force (lbs) | 26,300 |
| Max RPM | 6,000 |
| Chuck Style | (Compact Length / Compact Diameter) |
