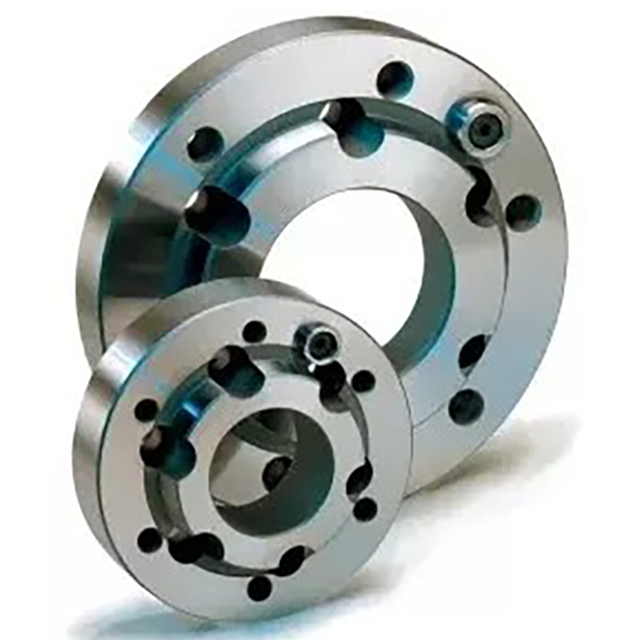

Royal 44014 | 11.00" Diameter x A2-11 Spindle x A2-8 Chuck Hardened and Ground Adapter Chuck Plates

$2,725.00 $2,452.50
(You save $272.50)
Brand:
Royal Products
Diameter (Inch):
11"
Diameter (Decimal Inch):
11.0000"
Diameter (mm):
279.40mm
interval quantity:
1
SKU:
55046412
UPC:
Weight:
40.00 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

  • Adapter plates offer the flexibility to mount collet chucks and 3-jaw chucks to a wider range of spindles

    • Mount a larger chuck on a smaller spindle for increased capacity
    • Mount a smaller chuck on a larger spindle for increased tool clearance and higher speeds

  • All Royal adapter plates are hardened to RC 61-63

  • High accuracy – 0.0002? TIR guaranteed

  • Metric screws included for mounting plate to spindle

  • Drive button included on all plates

    •
    Product Specifications
    Plate Diameter (Inch) 11.00"
    Spindle Mount A2-11
    Chuck Mount A2-8
    Plate Thickness 2.00
    Thru-Hole Diameter 4.76
    Spindle Mounting Bolts M-20
    Chuck Mount Threats M-16

    Warning:

    This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

    For more information, visit www.P65Warnings.ca.gov

    Brand:
    Royal Products
    Diameter (Inch):
    11"
    Diameter (Decimal Inch):
    11.0000"
    Diameter (mm):
    279.40mm
    interval quantity:
    1
