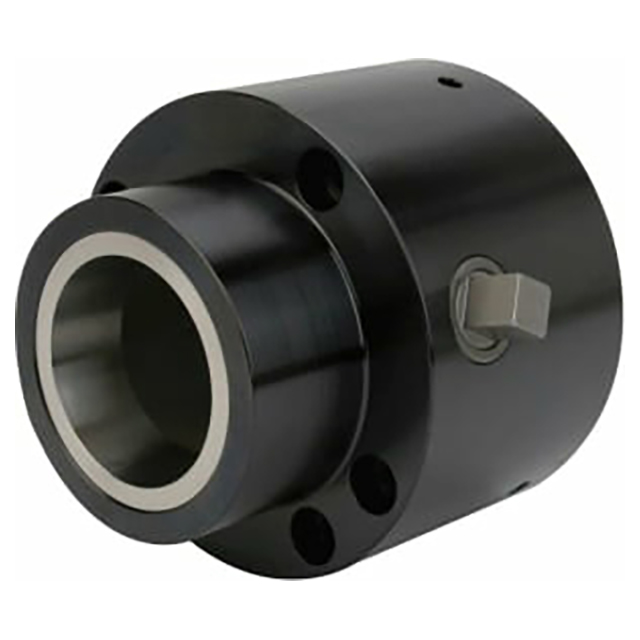

- Opened and closed via an internal cam mechanism
- Accu-Length operation – collet and workpiece position remains fixed for precise length control
- Can be used in both stationary and rotary table applications.Caution – not for use on lathes or grinders above 5 rpm!
- Special model 62004 bolts directly to Haas HRT-100 and HRT-110* and other small indexers.Note – cam bolt is recessed on this model
- All other models configured for both four and six-slot mounting – 4.125" bolt circle diameter
- All models include cam wrench
Product Specifications
| Collet Model | 16C |
| Collet Capacity (Inch) | 1 5/8 |
| Manual Collet Fixture Type | Type 2 |
| Manual Collet Fixture Dimension A | 4.95 |
| Manual Collet Fixture Dimension B | 3.35 |
| Manual Collet Fixture Dimension D | 4.63 |
| Manual Collet Fixture Dimension E | 1.50 |
