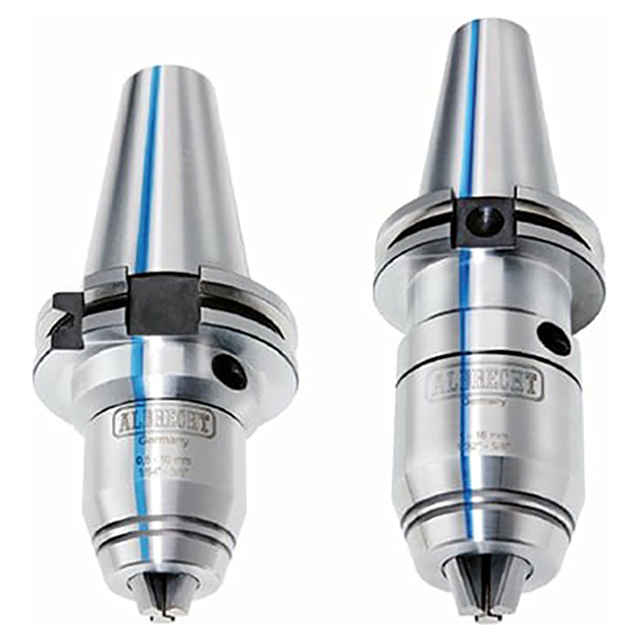

- New, compact design provides increased capacity and better clearance
- Extremely accurate – albrecht key-lock drill chucks are the most accurate drill chucks
- Unique worm/gear arrangement is similar to the uberchuck and transmits extremely high gripping force to the jaws
- Short length and integral shank provide exceptional rigidity
- Thru-coolant feature is standard on all albrecht key-lock drill chucks
- Non-rotating hood – chuck is opened and closed via a hex key inserted into the side of the body
- Balanced to G2.5 @ 20,000 rpm for use on all CNC machines
- Can be operated in both clockwise and counterclockwise directions
Product Specifications
| Drill Chuck Model | KL100-CAT40 |
| Drill Chuck Capacity (Inch) | 1/64 - 3/8 |
| Drill Chuck Capacity (mm) | 0.5 - 10 |
| Taper | CAT 40 |
| Drill Chuck Dimension A | 2.72 |
| Drill Chuck Dimension L1 | 3.39 |
| Drill Chuck Dimension L2 | 1/48 |
| Drill Chuck Dimension D1 | 1.50 |
| Drill Chuck Dimension D2 | 1.75 |
| Drill Chuck Weight | 2.8 |
