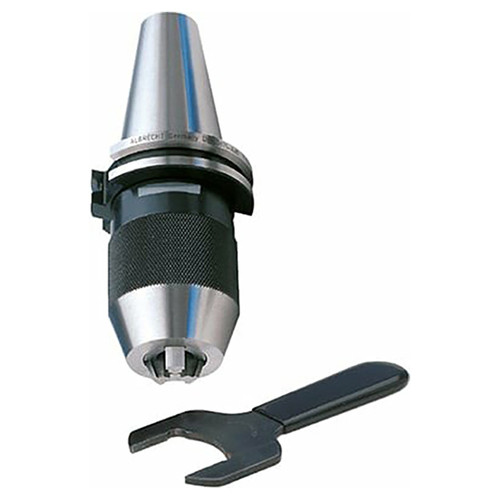

- A drill chuck can hold any size drill shank within its range. This is important because many tap drills have odd-sized shanks that are not compatible with conventional tool holders and collets
- As the jaws of a drill chuck close, they always remain parallel to centerline. This results in uniform gripping force and maximum accuracy, regardless of the drill shank diameter
- Internal construction is very similar to albrecht classic drill chucks
- Integral CAT taper makes these chucks shorter and more rigid than a chuck/arbor combination, resulting in:
- Greater accuracy
- Greater rigidity
- Larger work envelope
- Integral shank eliminates the possibility of a chuck slipping on its arbor
- Chuck can be easily tightened and opened by hand
- Extra tightening force can be achieved by using a spanner wrench (included), although this chuck also incorporates the same self-tightening feature as the Classic models
Product Specifications
| Drill Chuck Model | WL160-CAT50 |
| Drill Chuck Capacity (Inch) | 1?16 - 5?8 |
| Drill Chuck Capacity (mm) | 1.5 - 16 |
| Drill Chuck Shank Type | CAT 40 |
| Drill Chuck Dimension D (Inch) | 2 1?4" |
| Drill Chuck Dimension L1 (Inch) | 4 1/32" |
| Drill Chuck Dimension L2 (Inch) | 4 5?8" |
| Drill Chuck Thread | 1 8 |
| Maximum RPM | 6,500 |
| Drill Chuck Weight | 6.2 |
