Features:
- Flute engineered for maximum strength
- AlTiN+ coating for improved surface finish
- Made with premium submicron grade carbide
- Starts at 0.015 minimum bore
Product Specifications
Manufacturer Part Number | MB045250 |
Shank Diameter (Decimal Inch) | 0.125" |
Overall Length (Decimal Inch) | 1.500" |
Minimum Bore Diameter (Decimal Inch) | 0.045" |
Maximum Depth (Decimal Inch) | 0.250" |
Coating | Uncoated |
Material | Solid Carbide |

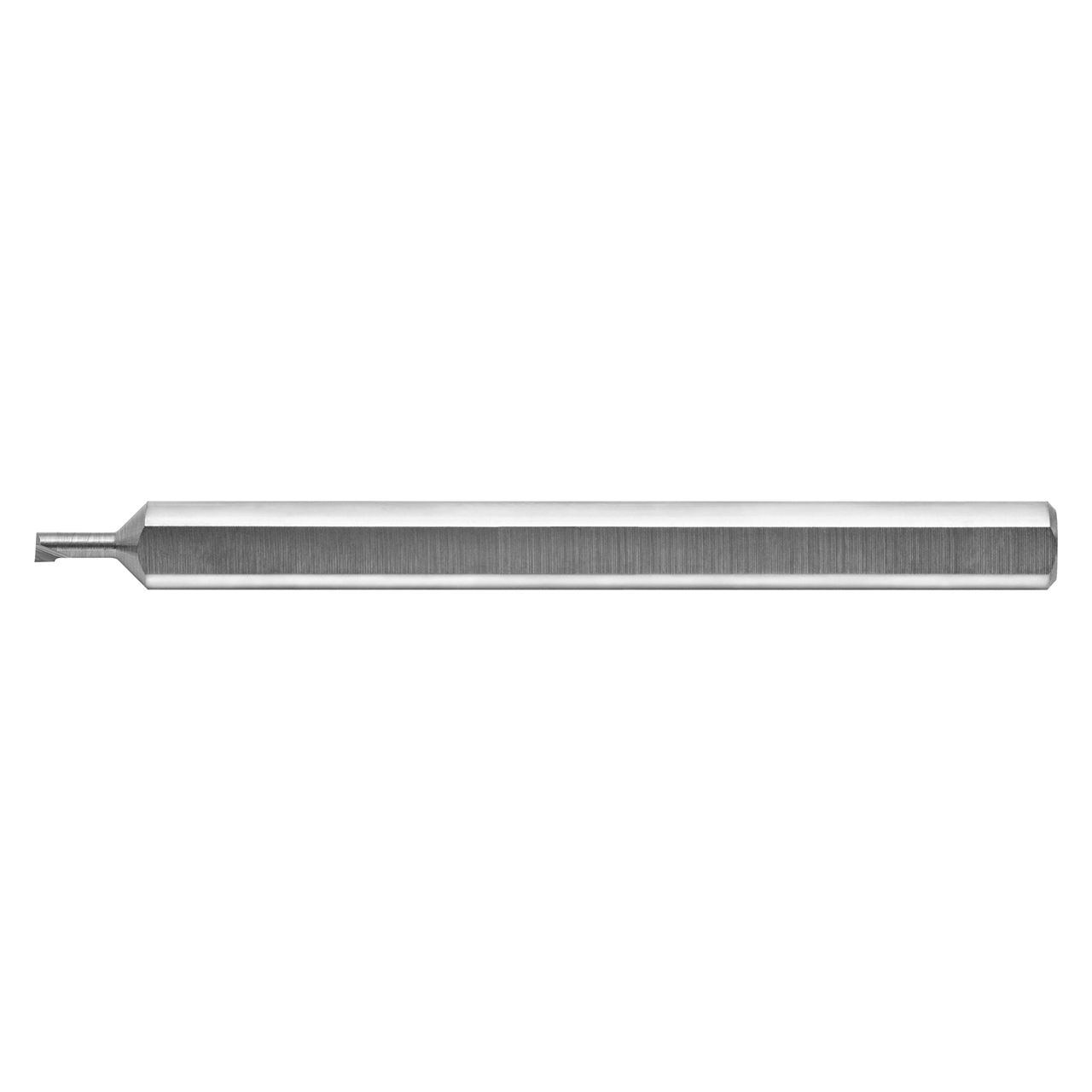

Product Type | Mini Boring Bar |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Minimum Bore Diameter (Inch):
3/64"
Minimum Bore Diameter (Decimal Inch):
0.0450"
Minimum Bore Diameter (mm):
1.14mm
Maximum Bore Depth (Inch):
1/4"
Maximum Bore Depth (Decimal Inch):
0.2500"
Maximum Bore Depth (mm):
6.35mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
