Features:
- Solid carbide provides maximum tool rigidity
- Long reach tools are available from stock
- Cuts UNC, UNF, UNEF, and UNS threads
- Cuts UNJ threads (internal only)
Product Specifications

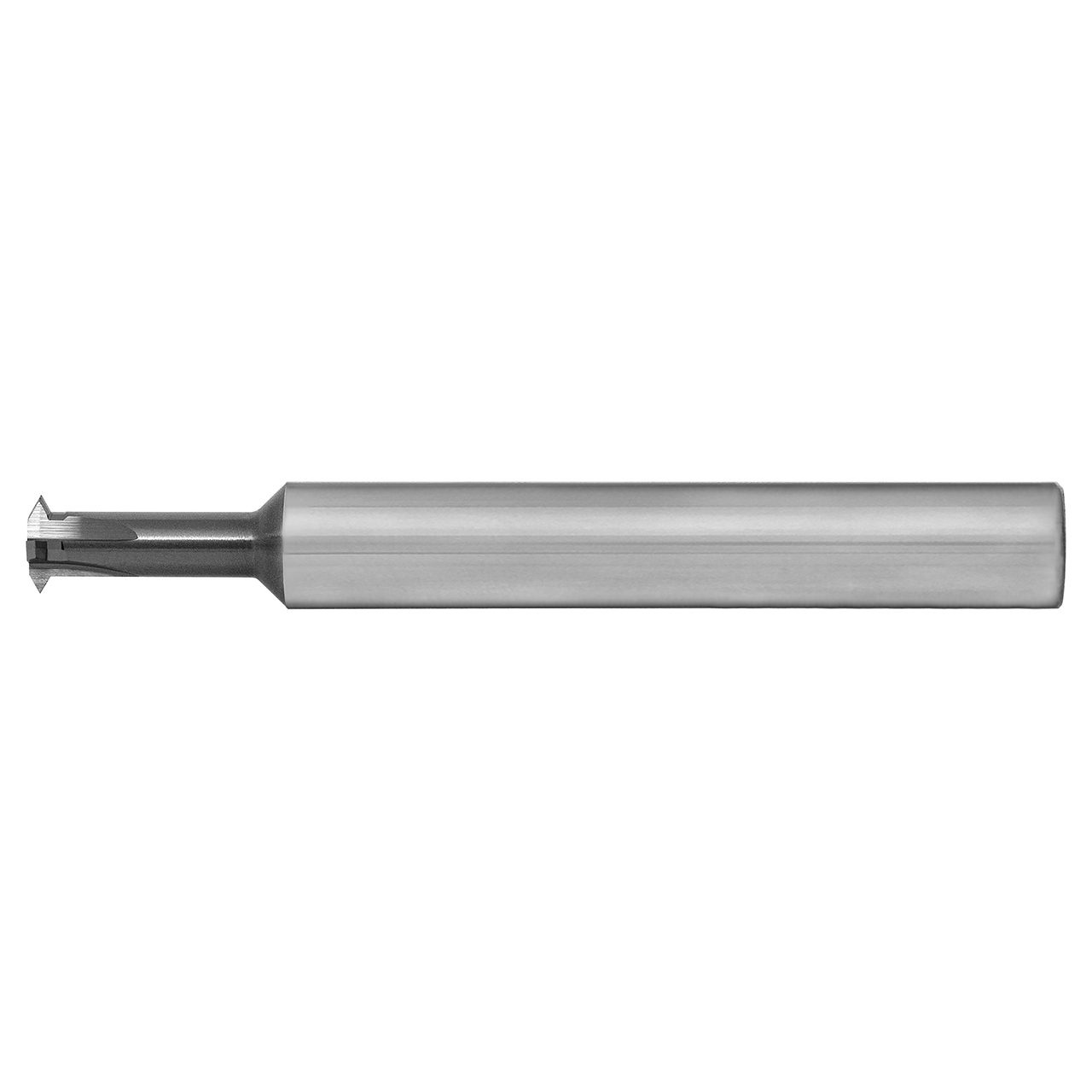

| Manufacturer Part Number | SPTM332A |
| Cutting Diameter (Decimal Inch) | 0.332" |
| Neck Diameter (Decimal Inch) | 0.220" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Overall Length (Decimal Inch) | 3.000" |
| Length (Decimal Inch) | 0.035" |
| Length of Cut (Decimal Inch) | 0.700" |
| Number of Flute | 4 |
| Minimum Internal Thread (Inch) | 7/16" |
| Internal Limits TPI | 14 to 48 TPI |
| External Limits TPI | 16 to 48 TPI |
| Material | Solid Carbide |
| Coating | AlTiN |
| Product Type | Single Profile Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Cutting Diameter (Inch):
1/3"
Cutting Diameter (Decimal Inch):
0.3320"
Cutting Diameter (mm):
8.43mm
Neck Diameter (Inch):
11/50"
Neck Diameter (Decimal Inch):
0.2200"
Neck Diameter (mm):
5.59mm
interval quantity:
1
