Features:
- Short length-of-cut for ideal length-to-diameter ratio
- Polished flute face for optimum performance
- Made with premium submicron grade carbide
- Internal crest cutting design for strongest possible tool
Product Specifications

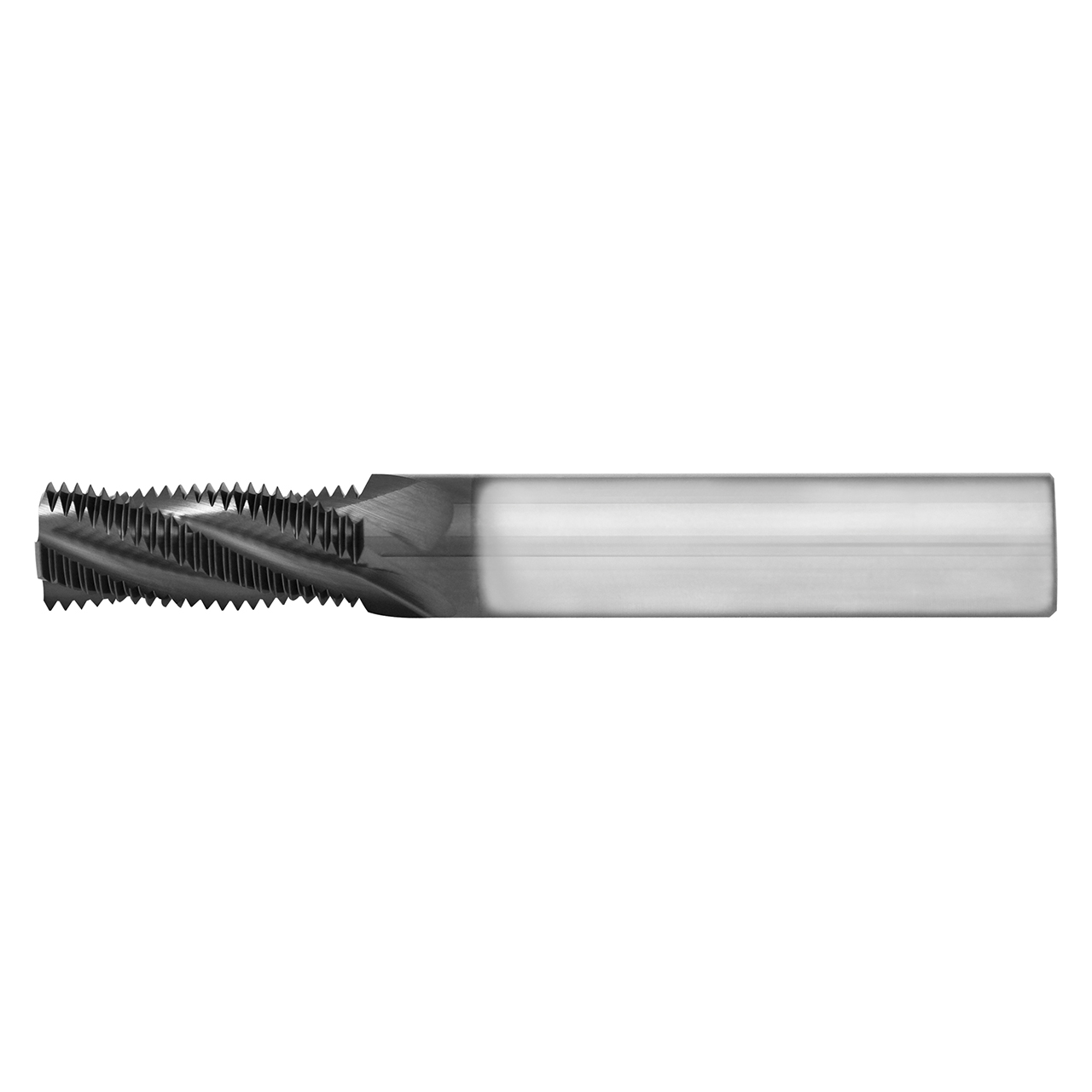

| Manufacturer Part Number | TM4-.5MM-SA |
| Cutting Diameter (Decimal Inch) | 0.110" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.500" |
| Minium ID Thread | M4-.5 |
| Length (Decimal Inch) | 0.009" |
| Length of Cut (Decimal Inch) | 0.224" |
| Number of Flute | 3 |
| Material | Solid Carbide |
| Coating | AlTiN |
| Product Type | Straight Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Cutting Diameter (Inch):
7/64"
Cutting Diameter (Decimal Inch):
0.1100"
Cutting Diameter (mm):
2.78mm
Length of Cut (Inch):
15/67"
Length of Cut (Decimal Inch):
0.1100"
Length of Cut (mm):
5.69mm
Finish/Coating:
AlTiN
