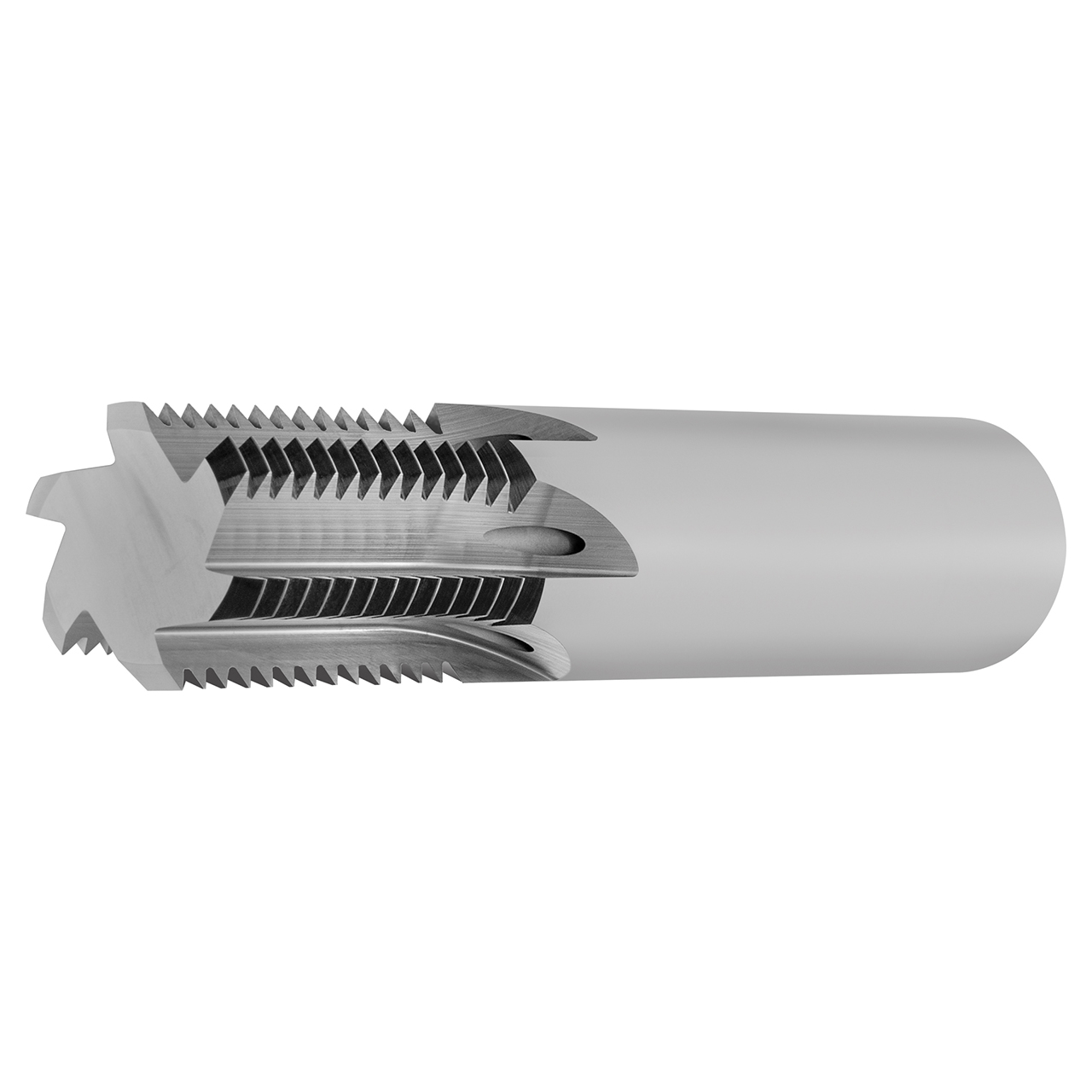

Product Specifications
| Manufacturer Part Number | TMC14-2MM-A |
| Cutting Diameter (Decimal Inch) | 0.450" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 3.500" |
| Minium ID Thread | M14-2 |
| Length (Decimal Inch) | 0.035" |
| Length of Cut (Decimal Inch) | 1.134" |
| Number of Flute | 4 |
| Material | Solid Carbide |
| Coating | AlTiN |
| Product Type | Straight Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Number of Flutes:
4
Cutting Diameter (Inch):
29/64"
Cutting Diameter (Decimal Inch):
0.4500"
Cutting Diameter (mm):
11.51mm
Length of Cut (Inch):
1-13/97"
Length of Cut (Decimal Inch):
0.4500"
Length of Cut (mm):
28.80mm
Finish/Coating:
AlTiN
interval quantity:
1
