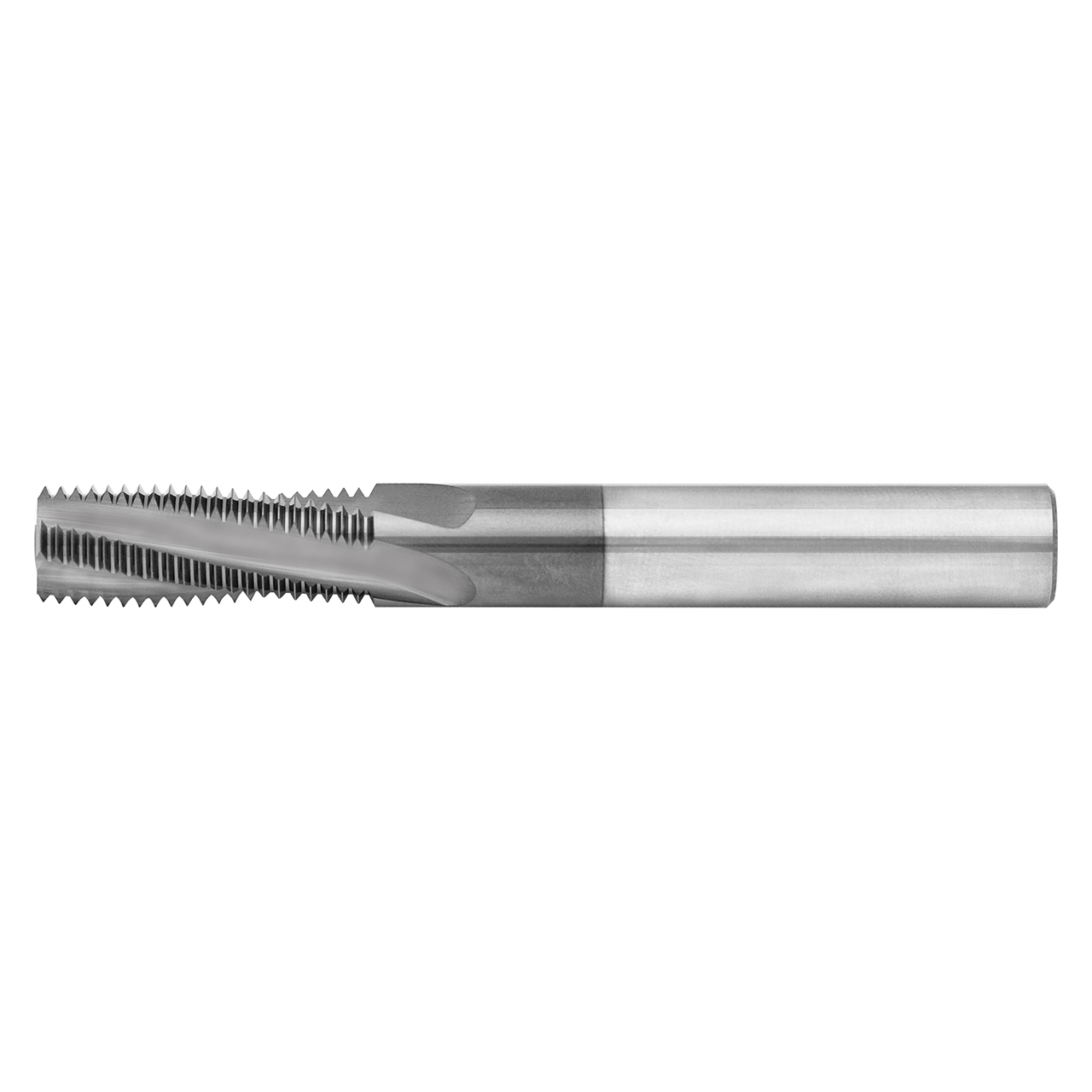

Scientific Cutting Tools TMI495-18HA | 3/4-18" Thread x 0.495" Diameter x 0.500" Shank x 4.000" OAL 4 Flute AlTiN Coated Solid Carbide Helical Flute Thread Mill

$204.75
Brand:
Scientific Cutting Tools
Thread Size (Inch):
3/4-18"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Number of Flutes:
4
Length of Cut (Inch):
1-19/64"
Length of Cut (Decimal Inch):
1.3000"
Length of Cut (mm):
33.02mm
Finish/Coating:
AlTiN
Material:
Solid Carbide
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.4950"
Cutter Diameter (mm):
12.57mm
SKU:
17980028
Weight:
0.41 LBS
Shipping:
Free Shipping
Scientific Cutting Tools TMI495-18HA | 3/4-18" Thread x 0.495" Diameter x 0.500" Shank x 4.000" OAL 4 Flute AlTiN Coated Solid Carbide Helical Flute Thread Mill

Features:

  • Cuts UNC, UNF, UNEF, UNS and UNJ (internal only)
  • Non-crest cutting allows maximum flexibility for plated and non-standard threads
  • Long length-of-cut

Product Specifications
Manufacturer Part NumberTMI495-18HA
Thread Size3/4-18"
Cutting Diameter (Decimal Inch)0.495"
Shank Diameter (Decimal Inch)0.500"
Overall Length (Decimal Inch)4.000"
Length of Cut (Decimal Inch)1.300"
CoatingAlTiN
MaterialSolid Carbide
Product TypeHelical Flute Thread Mill
