Features:
- Small thread milling is made easy with TMLR tools
- Economical cost per hole
- Minimal cutting pressure
- AlTiN+ coating for higher Surface Feet per Minute

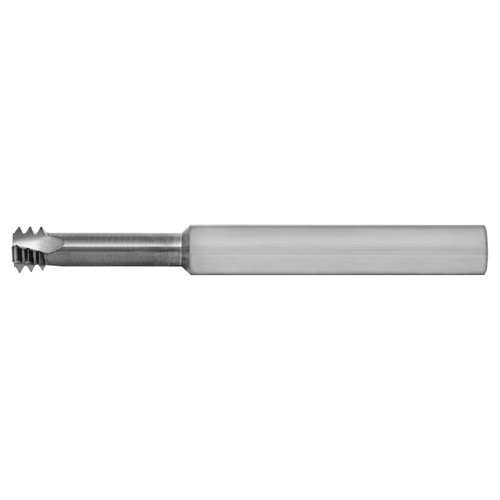

Product Specifications
| Manufacturer Part Number | TMLR186-28EL |
| Cutting Diameter (Decimal Inch) | 0.186" |
| Neck Diameter (Decimal Inch) | 0.130" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.500" |
| Length (Decimal Inch) | 0.018" |
| Length of Cut (Decimal Inch) | 0.700" |
| Number of Flute | 3 |
| Thread Pitch | 1/4-28" |
| Material | Solid Carbide |
| Coating | Uncoated |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1860"
Cutter Diameter (mm):
4.72mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
45/64"
Length of Cut (Decimal Inch):
0.7000"
Length of Cut (mm):
17.86mm
Finish/Coating:
Uncoated
Material:
Solid Carbide
interval quantity:
1
