Features:

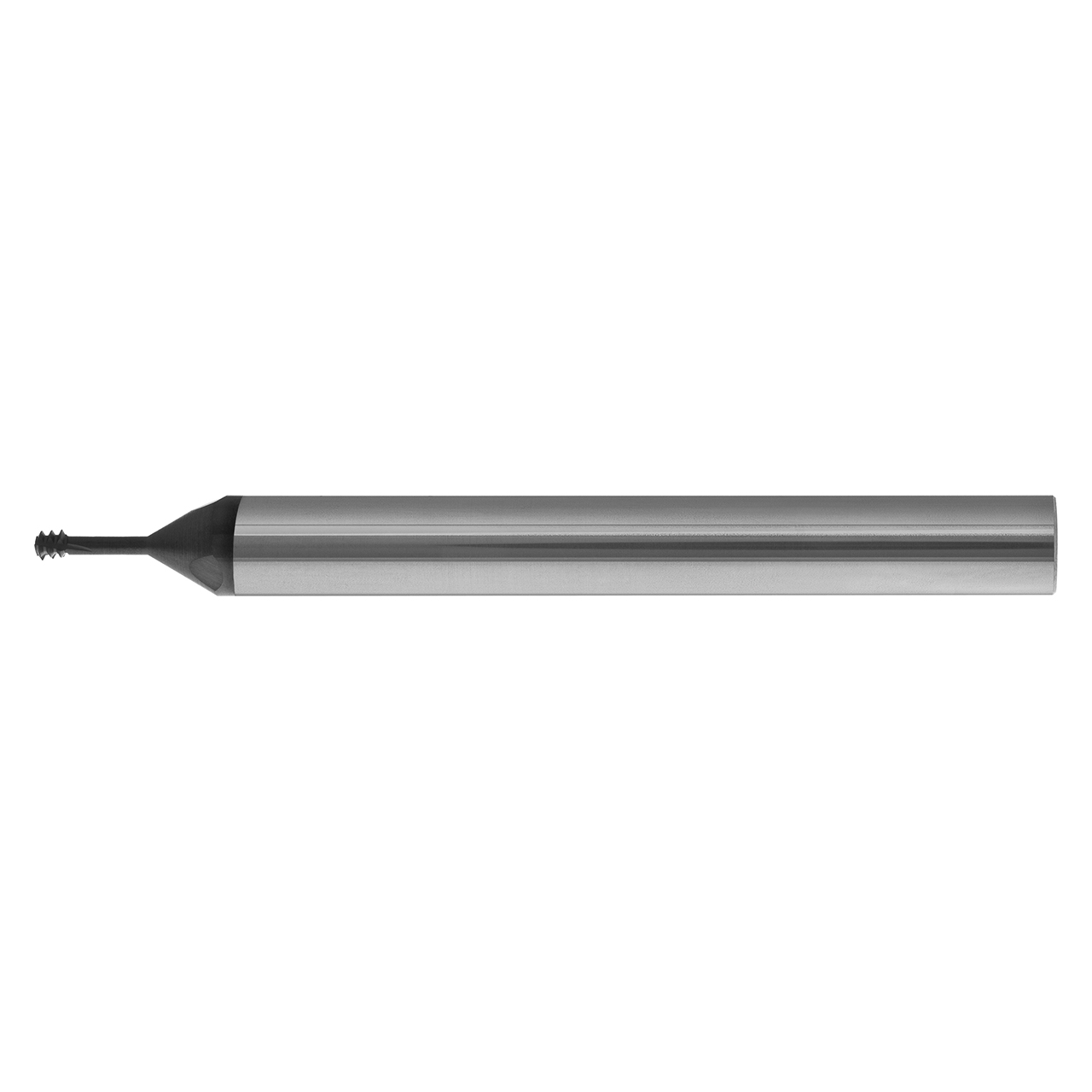

- Small thread milling is made easy with TMLR tools
- Minimal cutting pressure
- Thread sizes starting from M1.4-.3mm
Product Specifications
| Manufacturer Part Number | TMLR2.5-.45MMA |
| Thread Size | M2.5-.45 |
| Cutting Diameter (Decimal Inch) | 0.073" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Neck Diameter (Decimal Inch) | 0.046" |
| Overall Length (Decimal Inch) | 2.500" |
| Length of Cut (Decimal Inch) | 0.190" |
| Coating | AlTiN |
| Material | Solid Carbide |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Thread Size (mm):
M2.5-.45
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1900"
Length of Cut (mm):
4.76mm
Finish/Coating:
AlTiN
Material:
Solid Carbide
Cutter Diameter (Inch):
5/64"
Cutter Diameter (Decimal Inch):
0.0730"
Cutter Diameter (mm):
1.85mm
