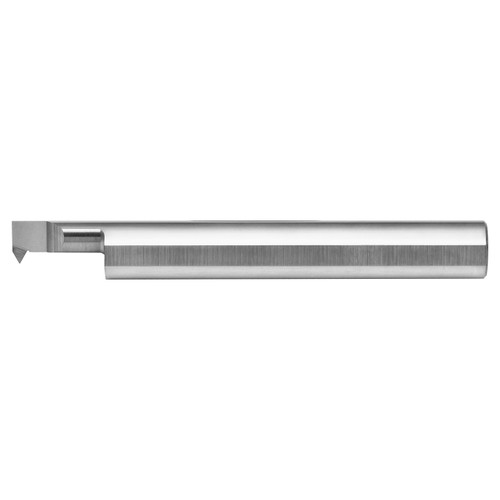

Scientific Cutting Tools TTQ1801000 | 18 to 56 TPI x 0.180" Minimum Bore Diameter x 0.001" Radius x 0.250" Shank x 2.500" OAL Uncoated Solid Carbide Single Point Threading Tool

$56.87 $51.18
(You save $5.69)
Brand:
Scientific Cutting Tools
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Material:
Solid Carbide
interval quantity:
1
SKU:
10243389
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Scientific Cutting Tools TTQ1801000 | 18 to 56 TPI x 0.180" Minimum Bore Diameter x 0.001" Radius x 0.250" Shank x 2.500" OAL Uncoated Solid Carbide Single Point Threading Tool

Features:

  • 60 Degree thread form for cutting UN, ISO, and NPT threads
  • Positive rake improves surface finish and reduces burrs
  • AlTiN+ coating provides better surface finish

Product Specifications
Manufacturer Part NumberTTQ1801000
Minimum Bore Diameter (Decimal Inch)0.180"
Maximum Bore Depth (Decimal Inch)1.000"
Off Set (Decimal Inch)0.040"
Radius (Decimal Inch)0.001"
Shank Diameter (Decimal Inch)0.250"
Overall Length (Decimal Inch)2.500"
Length (Decimal Inch)0.027"
Recommended TPI18 to 56 TPI
MaterialSolid Carbide
CoatingUncoated
Product TypeSingle Point Threading Tool

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
