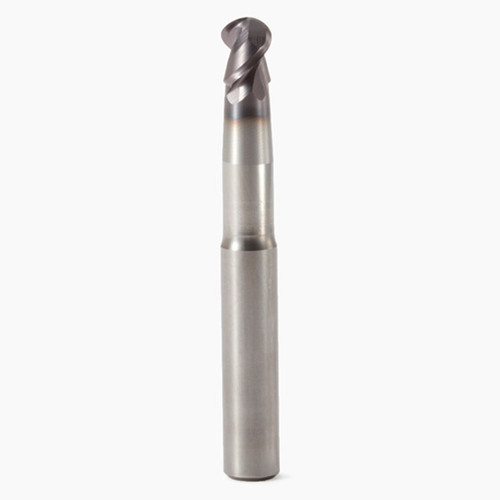

Seco Tools 00023032 | 450080 8.00mm Diameter x 8.00mm Shank x 4.00mm Corner Radius x 65.00mm OAL x 50 Degree Helix Angle 2 Flute MEGA Coated Carbide Ball End Mill

$188.00 $176.72
(You save $11.28)
Brand:
Seco Tools
Mill Diameter (Inch):
23/73"
Mill Diameter (Decimal Inch):
0.3150"
Mill Diameter (mm):
8.00mm
Number of Flutes:
2
Material:
Carbide
Shank Type:
Cylindrical
Overall Length (Inch):
2-52/93"
Overall Length (Decimal Inch):
2.5591"
Overall Length (mm):
65.00mm
Shank Diameter (Inch):
23/73"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Finish/Coating:
MEGA-T
Cutting Direction:
Right Hand
Helix Angle:
50 Degree
interval quantity:
1
SKU:
25268503
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 00023032 | 450080 8.00mm Diameter x 8.00mm Shank x 4.00mm Corner Radius x 65.00mm OAL x 50 Degree Helix Angle 2 Flute MEGA Coated Carbide Ball End Mill

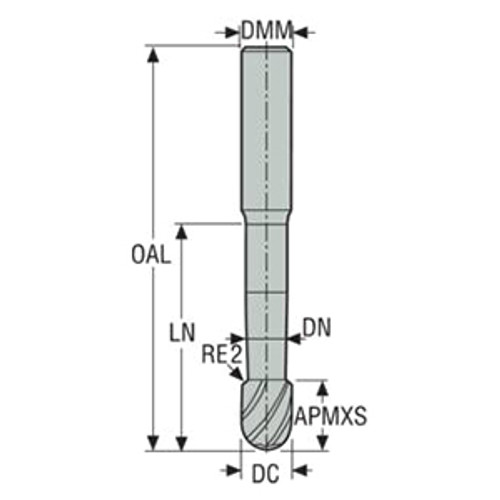

Product Specifications
Manufacturer Part Number00023032
Cutting Diameter (mm)8.00mm
Cutting Diameter 1 (mm)8.00mm
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (mm)8.00mm
Neck Diameter (mm)7.20mm
Minimum Helical Interpolation Hole Diameter (mm)10.40mm
Maximum Helical Interpolation Hole Diameter (mm)14.40mm
Cutting Edge Effective Length (mm)7.00mm
Neck Length (mm)30.00mm
Neck Length 1 (mm)30.00mm
Minimum Clamping Length (mm)36.00mm
Length Variant Cataloque2
Theoretical Cutting Edge Length (mm)7.40mm
Overall Length (mm)65.00mm
Number of Flute2
Pheripheral Cutting Edge Count2
Maximum Depth of Cut (mm)7.00mm
Profile Radius (mm)3.99mm
Corner Radius (mm)4.00mm
Radial Runout (mm)0.01mm
Cutting Edge Count2
Face Cutting Edge Count2
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Neck Angle (Degree)2.491 Degree
Flute Helix Angle (Degree)50 Degree
Rake Radial Angle (Degree)18 Degree
Rake Orthogonal Angle (Degree)14 Degree
Maximum Ramping Angle (Degree)30 Degree
Cutting DirectionRight Hand
Flute Helix HandRight Hand
Center Cutting CapabilityYes
Cutting Geometry TypeJH450
Cutting Geometry Type TechnicalJH450
Internal Coolant ChannelNo
Cutting Item Material TypeCarbide
Shank TypeCylindrical
MaterialCarbide
CoatingMEGA-T
Product TypeBall End Mill
