Product Specifications
| Manufacturer Part Number | 00030195 |
| Body Diameter 1 (Decimal Inch) | 0.787" |
| Body Diameter 1 (mm) | 20.00mm |
| Body Diameter 2 (Decimal Inch) | 0.787" |
| Body Diameter 2 (mm) | 20.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.472" |
| Connection Bore Diameter (mm) | 12.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Minimum Connection Bore Diameter (mm) | 12.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Maximum Connection Bore Diameter (mm) | 12.00mm |
| Body Length (Decimal Inch) | 1.969" |
| Body Length (mm) | 50.00mm |
| Body Length 1 (Decimal Inch) | 1.575" |
| Body Length 1 (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 0.630" |
| Functional Length (mm) | 16.00mm |
| Minimum Functional Length (Decimal Inch) | 0.217" |
| Protruding Length (Decimal Inch) | 1.969" |
| Protruding Length (mm) | 50.00mm |
| Clamping Length (Decimal Inch) | 1.339" |
| Clamping Length (mm) | 34.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Connection Bore Depth (mm) | 46.00mm |
| Body Half Taper Angle Degree) | 3 Degree |

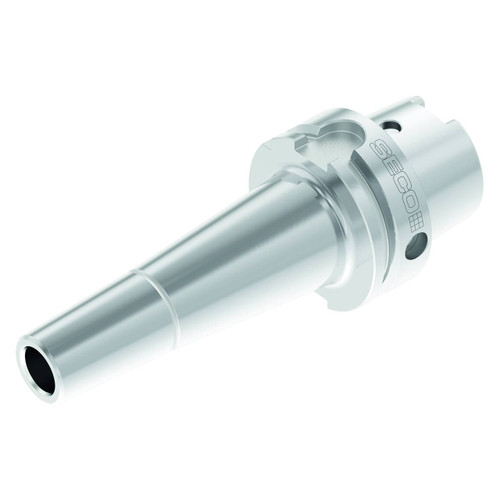

| Product Type | Shrink-Fit Tool Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Decimal Inch):
0.7874"
Body Diameter (mm):
20.00mm
Body Length (Decimal Inch):
1.5748"
Body Length (mm):
40.00mm
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
