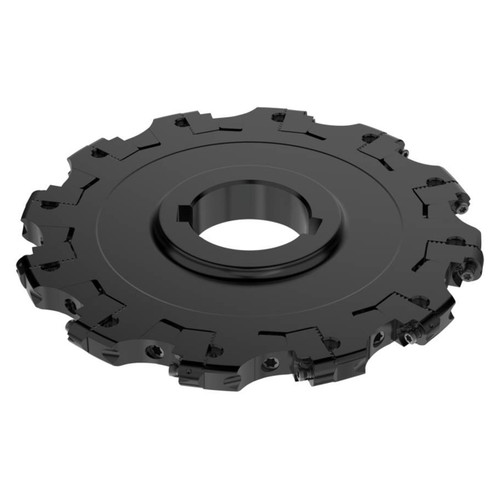

Seco Tools 00079979 | 335.18-06.00-0708N-R5 154.40mm Diameter x 12.94mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

$2,760.00 $2,677.20
(You save $82.80)
Brand:
Seco Tools
Cutting Width (Inch):
10"
Cutting Width (Decimal Inch):
0.3937"
Cutting Width (mm):
10.00mm
Maximum Depth of Cut (Decimal Inch):
0.4724"
Maximum Depth of Cut (mm):
12.00mm
Cutter Diameter (Decimal Inch):
6.0787"
Cutter Diameter (mm):
154.40mm
interval quantity:
1
SKU:
23275346
UPC:
Weight:
2.38 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Seco Tools 00079979 | 335.18-06.00-0708N-R5 154.40mm Diameter x 12.94mm Functional Length x 90 Degree Cutting Edge Angle Indexable Slotting Cutter

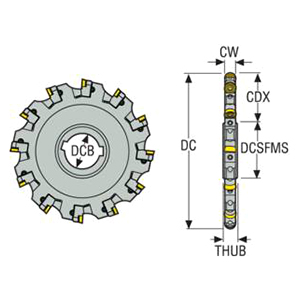

Product Specifications
Manufacturer Part Number00079979
Cutting Diameter (Decimal Inch)6.079"
Cutting Diameter (mm)154.40mm
Connection Bore Diameter (Decimal Inch)1.500"
Connection Bore Diameter (mm)38.10mm
Maximum Cutting Diameter (Decimal Inch)6.079"
Maximum Cutting Diameter (mm)154.40mm
Contact Surface Diameter Machine Side (Decimal Inch)2.252"
Contact Surface Diameter Machine Side (mm)57.20mm
Functional Length (Decimal Inch)0.509"
Functional Length (mm)12.94mm
Keyway Width (Decimal Inch)0.375"
Keyway Width (mm)9.52mm
Cutting Width (Decimal Inch)0.394"
Cutting Width (mm)10.00mm
Minimum Cutting Width (Decimal Inch)0.394"
Minimum Cutting Width (mm)10.00mm
Maximum Cutting Width (Decimal Inch)0.472"
Maximum Depth of Cut (Decimal Inch)0.472"
Maximum Depth of Cut (mm)12.00mm
Maximum Cutting Depth (Decimal Inch)1.811"
Maximum Cutting Depth (mm)46.00mm
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Rake Radial Angle (Degree)-2 Degree
Cutting DirectionNeutral
Maximum Rotational Speed (rpm)7500 rpm
Cutting Pitch DensityNormal
Pocket Seat Code of The CutterRD..10T3
Cutting Item Material TypeSteel
Shank TypeArbor hole
Product TypeIndexable Slotting Cutter
