Product Specifications

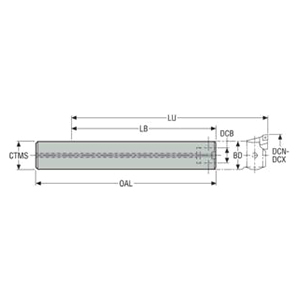

| Manufacturer Part Number | 00086936 |
| Body Diameter (Decimal Inch) | 0.787" |
| Body Diameter (mm) | 20.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.433" |
| Connection Bore Diameter (mm) | 11.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.906" |
| Minimum Cutting Diameter (mm) | 23.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.221" |
| Maximum Cutting Diameter (mm) | 31.00mm |
| Body Length (Decimal Inch) | 3.937" |
| Body Length (mm) | 100.00mm |
| Functional Length (Decimal Inch) | 7.480" |
| Functional Length (mm) | 190.00mm |
| Protruding Length (Decimal Inch) | 5.906" |
| Protruding Length (mm) | 150.00mm |
| Usable Length (Decimal Inch) | 5.512" |
| Usable Length (mm) | 140.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Product Type | Boring Head Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
25/32"
Body Diameter (Decimal Inch):
0.7870"
Body Diameter (mm):
20.00mm
Overall Length (Inch):
5-29/32"
Overall Length (Decimal Inch):
5.9060"
Overall Length (mm):
150.00mm
interval quantity:
1
