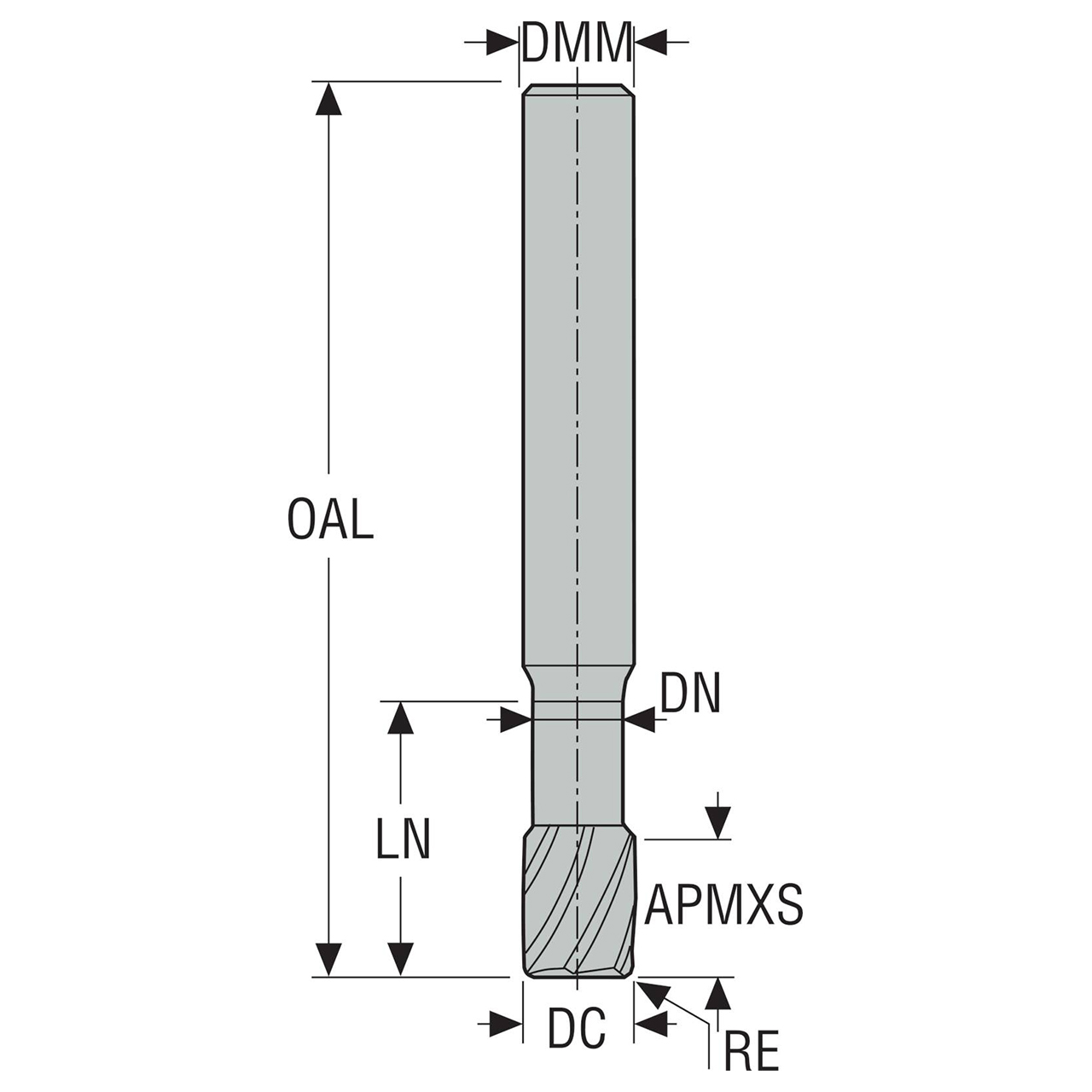

Product Specifications
| Manufacturer Part Number | 02434964 |
| Cutting Diameter (mm) | 8.00mm |
| Cutting Diameter 1 (mm) | 8.00mm |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (mm) | 8.00mm |
| Neck Diameter (mm) | 7.20mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 14.74mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.40mm |
| Overall Length (mm) | 65.00mm |
| Neck Length (mm) | 30.00mm |
| Neck Length 1 (mm) | 30.00mm |
| Cutting Edge Effective Length (mm) | 10.00mm |
| Corner Chamfer Width (Decimal Inch) | 0.006" |
| Corner Chamfer Width (mm) | 0.14mm |
| Maximum Depth of Cut (mm) | 10.00mm |
| Corner Radius (mm) | 0.60mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | JH421 |
| Cutting Geometry Type Technical | JH421 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 18 Degree |
| Axial Rake Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Coating | MEGA-T |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Decimal Inch):
0.3150"
Mill Diameter (mm):
8.00mm
Number of Flutes:
2
Corner Radius (Decimal Inch):
0.0236"
Corner Radius (mm):
0.60mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
MEGA-T
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Overall Length (Decimal Inch):
2.5591"
Overall Length (mm):
65.00mm
Cutting Direction:
Right Hand
