Seco Tools 02434967 | 8.00mm Diameter x 8.00mm Shank x 1.00mm Radius x 65.00mm OAL 2 Flute 30 Degree Helix Angle MEGA-T Coated Carbide Corner Radius End Mill

$180.00 $169.20
(You save $10.80)
Brand:
Seco Tools
Mill Diameter (Inch):
23/73"
Mill Diameter (Decimal Inch):
0.3150"
Mill Diameter (mm):
8.00mm
Number of Flutes:
2
Corner Radius (Inch):
3/76"
Corner Radius (Decimal Inch):
0.0394"
Corner Radius (mm):
1.00mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
MEGA-T
Shank Diameter (Inch):
23/73"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Overall Length (Inch):
2-52/93"
Overall Length (Decimal Inch):
2.5591"
Overall Length (mm):
65.00mm
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25269098
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 02434967 | 8.00mm Diameter x 8.00mm Shank x 1.00mm Radius x 65.00mm OAL 2 Flute 30 Degree Helix Angle MEGA-T Coated Carbide Corner Radius End Mill

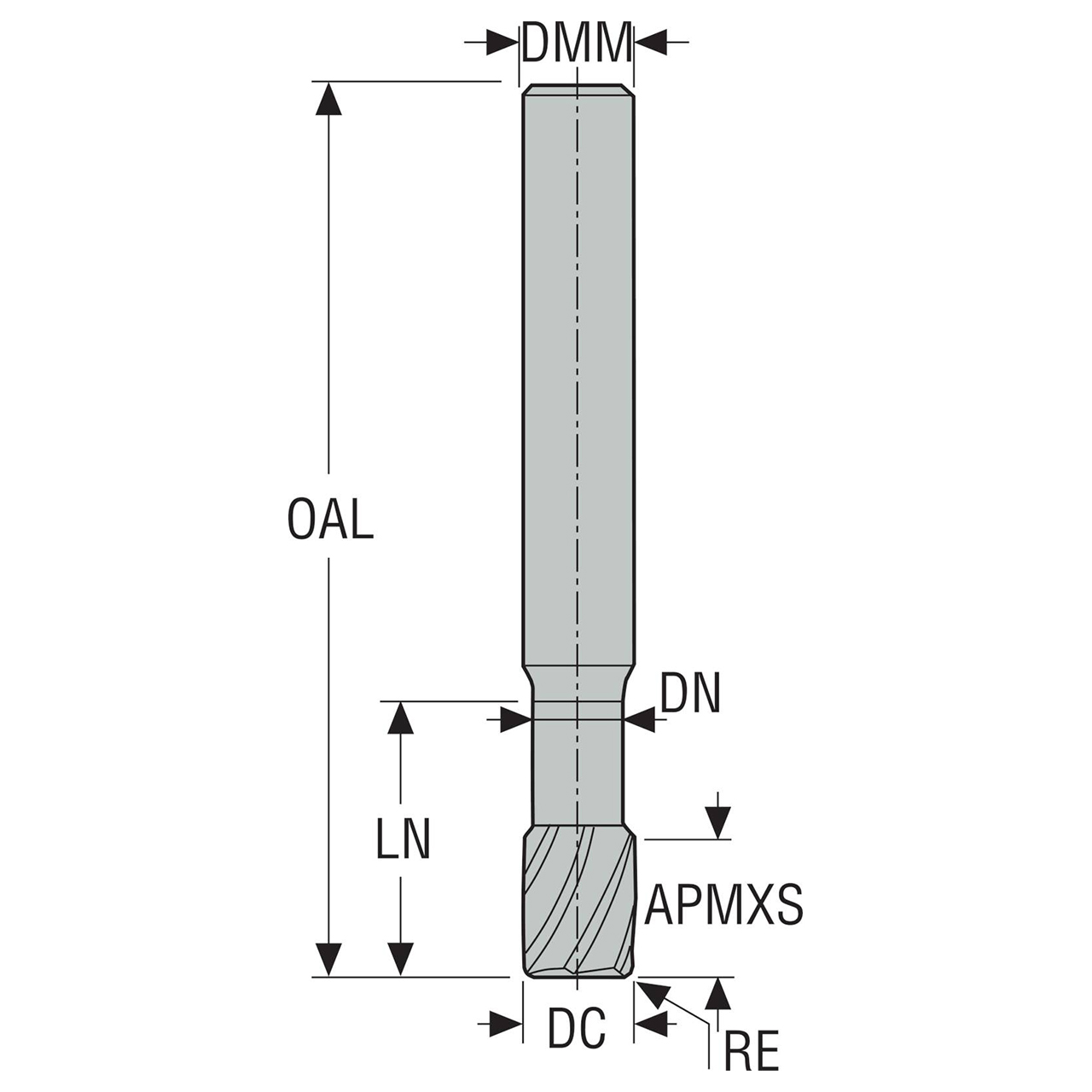

Product Specifications
Manufacturer Part Number02434967
Cutting Diameter (mm)8.00mm
Cutting Diameter 1 (mm)8.00mm
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (mm)8.00mm
Neck Diameter (mm)7.20mm
Maximum Helical Interpolation Hole Diameter (mm)13.90mm
Minimum Helical Interpolation Hole Diameter (mm)10.40mm
Overall Length (mm)65.00mm
Neck Length (mm)30.00mm
Neck Length 1 (mm)30.00mm
Cutting Edge Effective Length (mm)10.00mm
Insert Width (Decimal Inch)0.323"
Insert Width (mm)8.20mm
Maximum Depth of Cut (mm)10.00mm
Corner Radius (mm)1.00mm
Shank TypeCylindrical
Center Cutting CapabilityYes
Cutting Edge Count2
Cutting Geometry TypeJH421
Cutting Geometry Type TechnicalJH421
Face Cutting Edge Count2
Flute Helix Angle (Degree)30 Degree
Flute Helix DirectionRight
Rake Radial Angle (Degree)18 Degree
Axial Rake Angle (Degree)30 Degree
Cutting DirectionRight Hand
Internal Coolant ChannelNo
Tool Cutting Edge Angle (Degree)90 Degree
Number of Flute2
MaterialCarbide
CoatingMEGA-T
Product TypeCorner Radius End Mill
