Seco Tools 02505920 | 0.500" Inscribed Circle Diameter x 0.032" Radius x 0.125" Thickness 4 Cutting Edge Carbide Milling Insert

$14.65
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
interval quantity:
1
SKU:
23277439
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 02505920 | 0.500" Inscribed Circle Diameter x 0.032" Radius x 0.125" Thickness 4 Cutting Edge Carbide Milling Insert

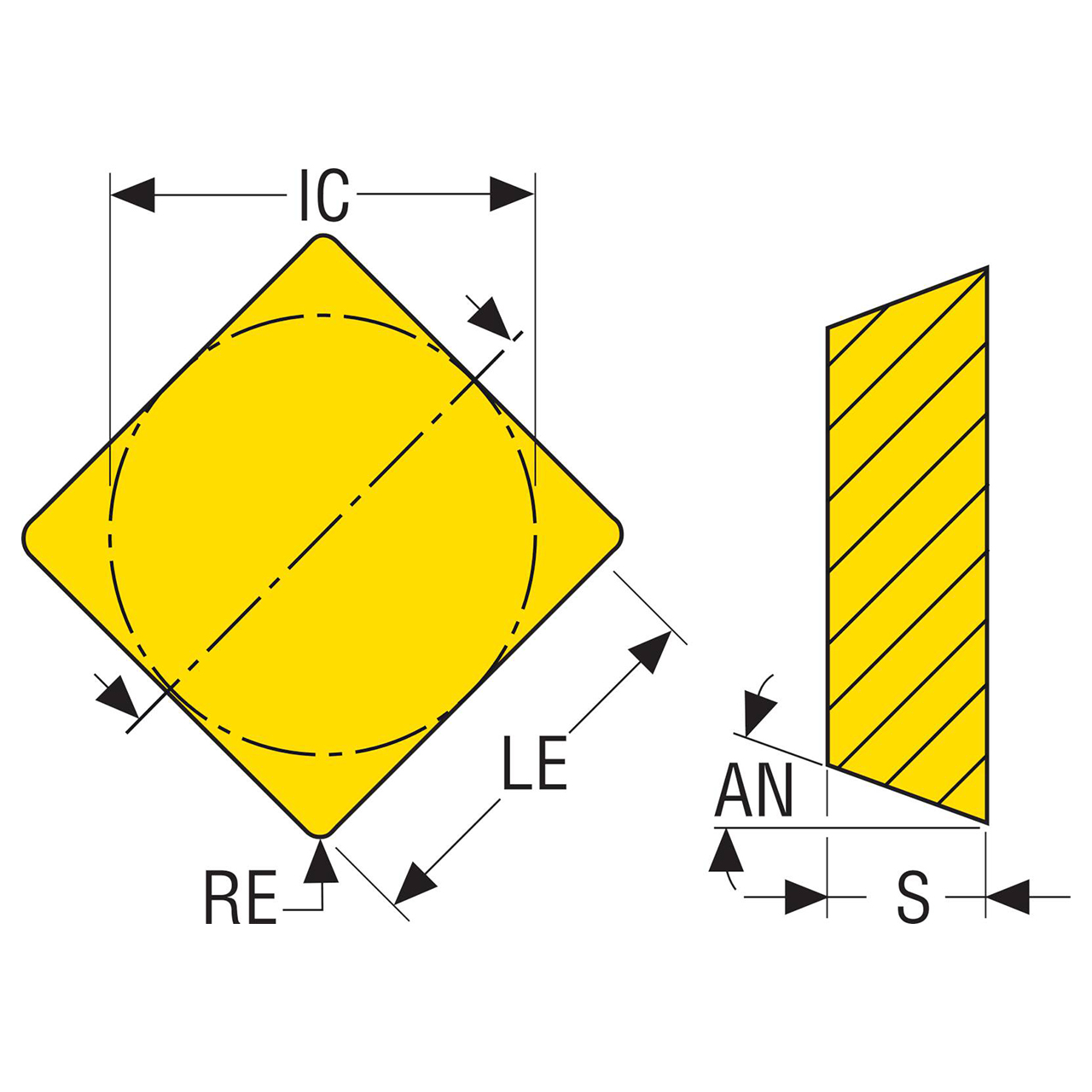

Product Specifications
Manufacturer Part Number02505920
Inscribed Circle Diameter (Decimal Inch)0.500"
Inscribed Circle Diameter (mm)12.70mm
Cutting Edge Effective Length (Decimal Inch)0.437"
Cutting Edge Effective Length (mm)11.10mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Insert Thickness (Decimal Inch)0.125"
Insert Thickness (mm)3.18mm
Clearance Angle Major (Degree)20 Degree
Cutting Edge Count4
Cutting Geometry Type TechnicalM12
Pocket Seat Code of The CutterSE..1203
Insert Size And ShapeSENN1203
Insert HandNeutral
MaterialCarbide
Product TypeMilling Insert
