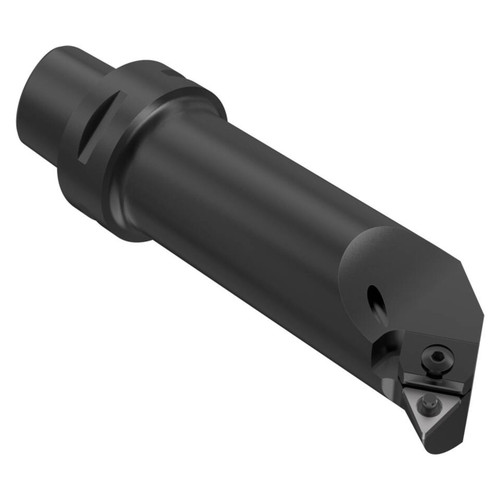

Product Specifications
| Manufacturer Part Number | 02590028 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.969" |
| Minimum Cutting Diameter Internal (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 5.512" |
| Functional Length (mm) | 140.00mm |
| Head Length (Decimal Inch) | 4.685" |
| Head Length (mm) | 119.00mm |
| Usable Length (Decimal Inch) | 4.685" |
| Usable Length (mm) | 119.00mm |
| Functional Width (Decimal Inch) | 1.063" |
| Functional Width (mm) | 27.00mm |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | W |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 117.8 Degree |
| Inclination Angle (Degree) | -11 Degree |
| Insert Shape Code | T |
| Shank Type | Seco-Capto |
| Product Type | Modular Turning Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Direction:
Right Hand
Head Length (Inch):
4-50/73"
Head Length (Decimal Inch):
4.6850"
Head Length (mm):
119.00mm
