Product Specifications
| Manufacturer Part Number | 02685846 |
| Cutting Diameter (mm) | 315.00mm |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (mm) | 225.00mm |
| Maximum Cutting Diameter (mm) | 330.00mm |
| Functional Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Depth of Key Way (mm) | 14.00mm |
| Keyway Width (mm) | 25.70mm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -11 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 40 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 40 Degree |
| Maximum Rotational Speed (rpm) | 2200 rpm |
| Insert Shape Code | O |
| Shank Type | Arbor |

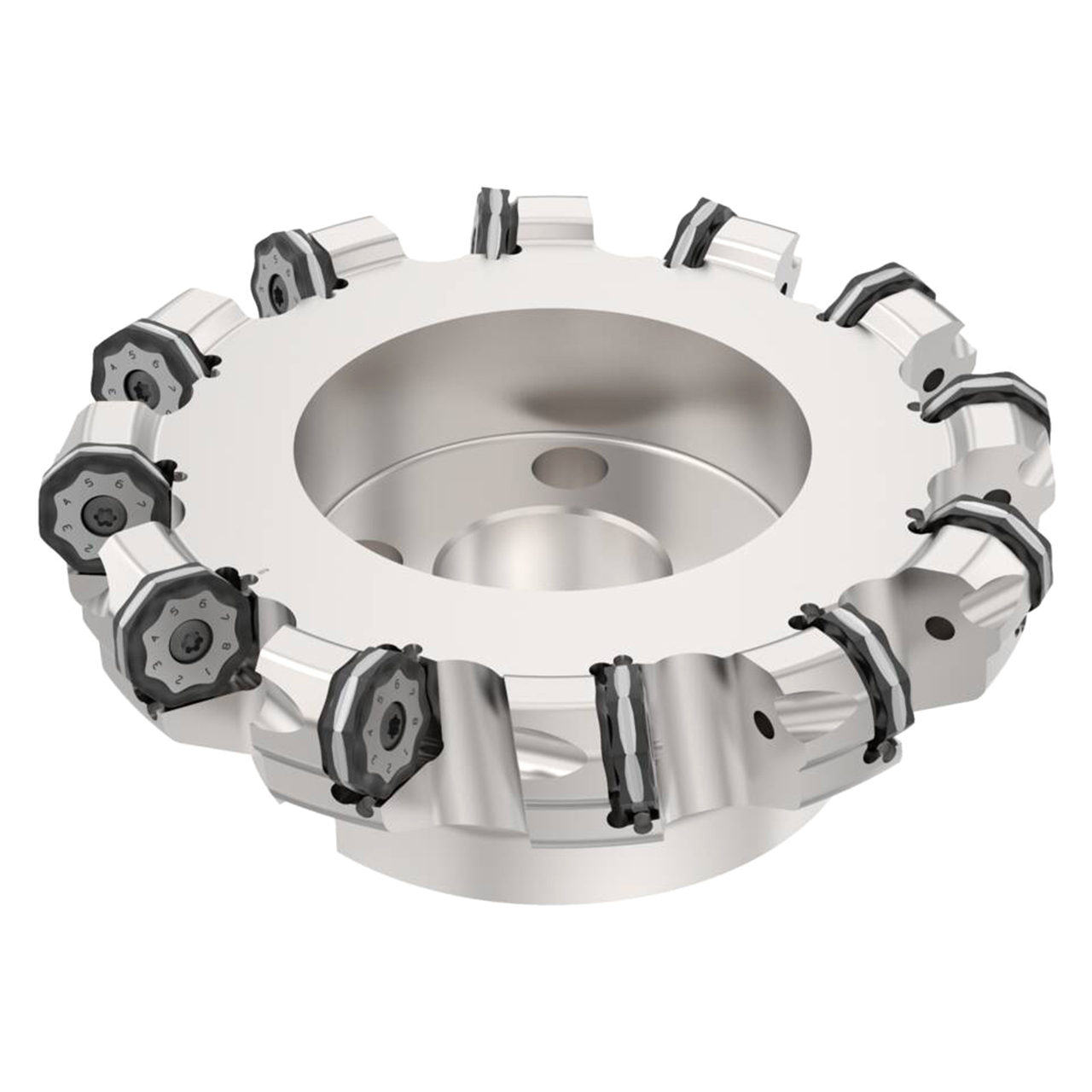

| Product Type | Indexable Face Mill Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
12-2/5"
Cutting Diameter (Decimal Inch):
12.4016"
Cutting Diameter (mm):
315.00mm
Maximum Depth of Cut (Inch):
17/72"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6.00mm
