Product Specifications
| Manufacturer Part Number | 02690650 |
| Cutting Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 44.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 49.00mm |
| Functional Length (mm) | 65.00mm |
| Protruding Length (mm) | 40.00mm |
| Shank Length (mm) | 70.00mm |
| Overall Length (mm) | 90.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -5.8 Degree |
| Rake Orthogonal Angle (Degree) | -5.8 Degree |
| Maximum Ramping Angle (Degree) | 2.5 Degree |
| Maximum Rotational Speed (rpm) | 37600 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XO.X0602 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Weldon |

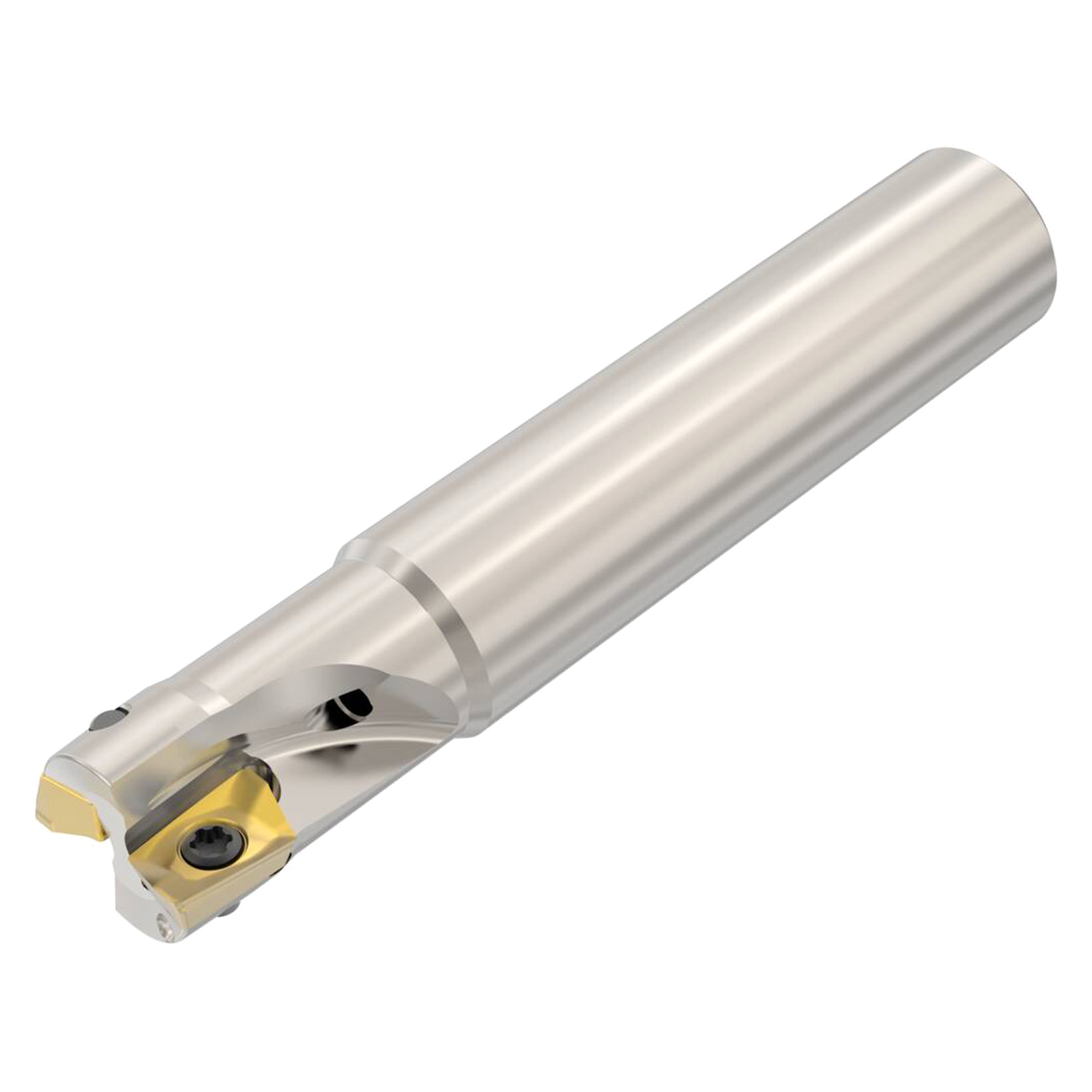

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
25"
Cutting Diameter (Decimal Inch):
0.9843"
Cutting Diameter (mm):
25.00mm
Shank Type:
Weldon
Overall Length (Inch):
90"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
