Product Specifications
| Manufacturer Part Number | 02690737 |
| Cutting Diameter (mm) | 10.00mm |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 14.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 19.00mm |
| Protruding Length (mm) | 62.00mm |
| Shank Length (mm) | 82.00mm |
| Overall Length (mm) | 100.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -11.8 Degree |
| Rake Orthogonal Angle (Degree) | -11.8 Degree |
| Maximum Ramping Angle (Degree) | 10 Degree |
| Maximum Rotational Speed (rpm) | 60000 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XO.X0602 |
| Cutting Item Material Type | Steel |
| Shank Type | Cylindrical |

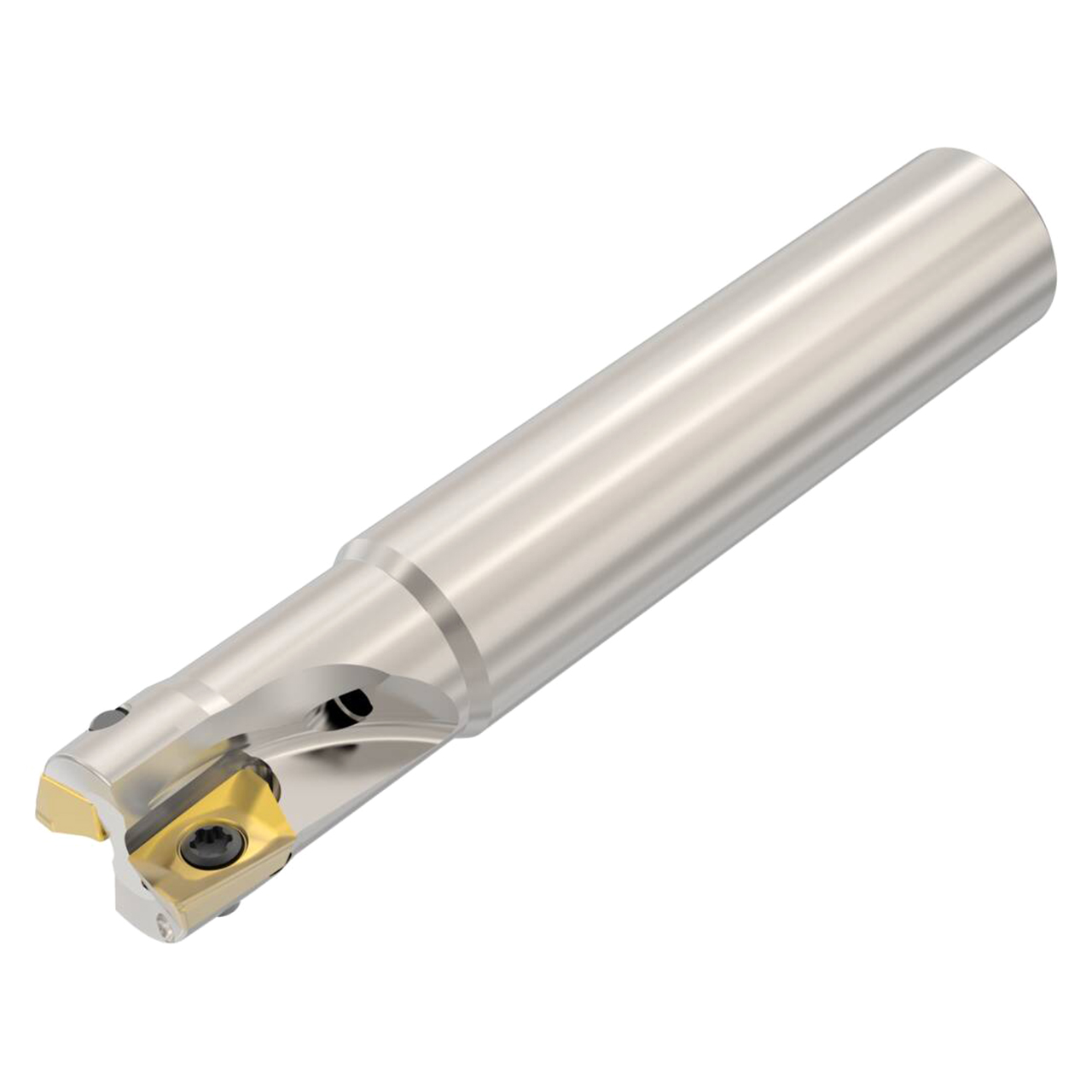

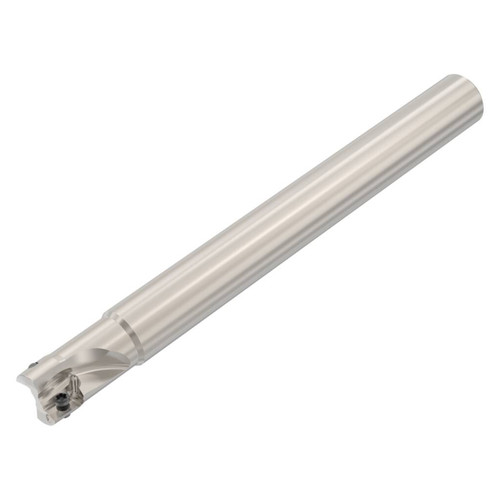

| Product Type | Indexable Square-Shoulder End Mill |
