Product Specifications
| Manufacturer Part Number | 02695013 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.906" |
| Contact Surface Diameter Machine Side (mm) | 23.00mm |
| Thread Diameter Size | M12 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.949" |
| Maximum Helical Interpolation Hole Diameter (mm) | 49.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.772" |
| Minimum Helical Interpolation Hole Diameter (mm) | 45.00mm |
| Functional Length (Decimal Inch) | 1.378" |
| Functional Length (mm) | 35.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Connection Mounting Torque (Nm) | 60.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5.8 Degree |
| Rake Radial Angle (Degree) | -5.8 Degree |
| Rake Orthogonal Angle (Degree) | -5.8 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Maximum Rotational Speed (rpm) | 37600 rpm |
| Shank Type | Combimaster |

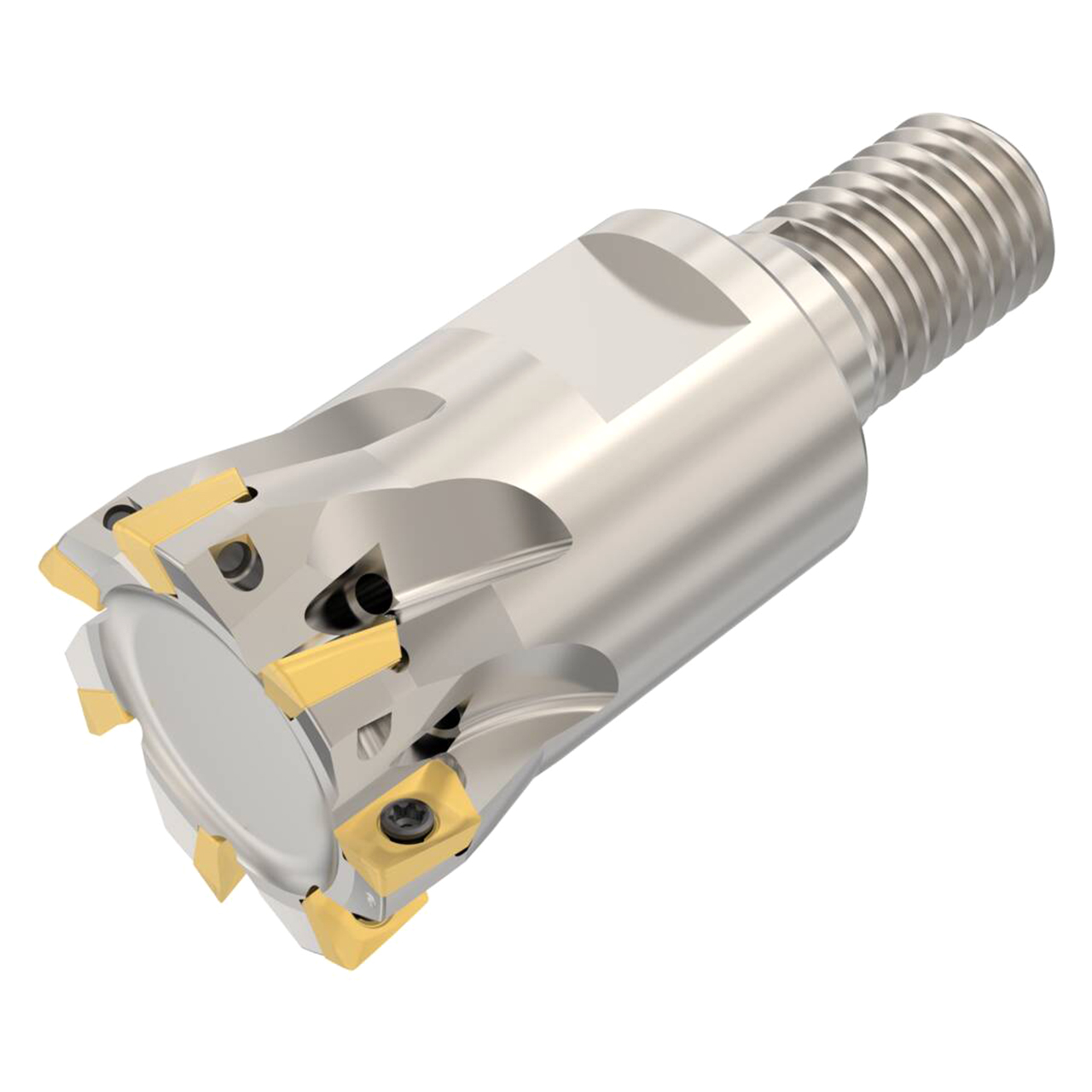

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1"
Cutting Diameter (Decimal Inch):
1.0000"
Cutting Diameter (mm):
25.40mm
Shank Type:
Combimaster
