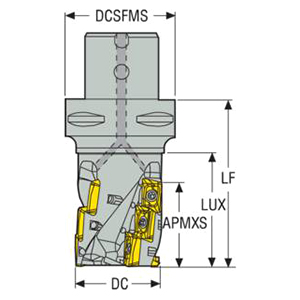

Product Specifications
| Manufacturer Part Number | 02721715 |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Cutting Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 3.902" |
| Maximum Helical Interpolation Hole Diameter (mm) | 99.10mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 3.276" |
| Minimum Helical Interpolation Hole Diameter (mm) | 83.20mm |
| Functional Length (Decimal Inch) | 3.898" |
| Functional Length (mm) | 99.00mm |
| Overall Length (Decimal Inch) | 5.394" |
| Overall Length (mm) | 137.00mm |
| Maximum Depth of Cut (mm) | 62.00mm |
| Maximum Depth of Cut (Decimal Inch) | 2.441" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -7.5 Degree |
| Rake Radial Angle (Degree) | -7.5 Degree |
| Rake Orthogonal Angle (Degree) | -7.5 Degree |
| Axial Rake Angle (Degree) | 5.5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Ramping Angle (Degree) | 3 Degree |
| Maximum Rotational Speed (rpm) | 8900 rpm |
| Insert Shape Code | X |
| Shank Type | Seco-Capto |
| Product Type | Indexable Square Shoulder Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2"
Cutting Diameter (Decimal Inch):
2.0000"
Cutting Diameter (mm):
50.80mm
Maximum Depth of Cut (Inch):
2-41/93"
Maximum Depth of Cut (Decimal Inch):
2.4409"
Maximum Depth of Cut (mm):
62.00mm
