Product Specifications
| Manufacturer Part Number | 02731373 |
| Cutting Diameter (mm) | 80.00mm |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Thread Diameter Size | M16 |
| Maximum Depth of Cut (mm) | 2.50mm |
| Maximum Cutting Depth (mm) | 19.50mm |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Cutting Width (mm) | 2.25mm |
| Minimum Cutting Width (mm) | 2.25mm |
| Maximum Cutting Width (mm) | 2.50mm |
| Hub Thickness (mm) | 1.9 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 3500 rpm |
| Shank Type | Combimaster |

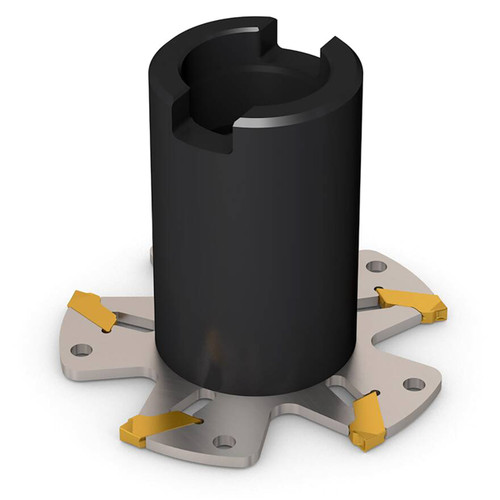

| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
