Product Specifications
| Manufacturer Part Number | 02740860 |
| Cutting Diameter (Decimal Inch) | 12.000" |
| Cutting Diameter (mm) | 304.80mm |
| Connection Bore Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (mm) | 50.80mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.000" |
| Contact Surface Diameter Machine Side (mm) | 76.20mm |
| Functional Length (Decimal Inch) | 0.469" |
| Functional Length (mm) | 11.90mm |
| Keyway Width (Decimal Inch) | 0.500" |
| Keyway Width (mm) | 12.70mm |
| Minimum Cutting Width (Decimal Inch) | 0.312" |
| Minimum Cutting Width (mm) | 7.92mm |
| Maximum Cutting Width (Decimal Inch) | 0.394" |
| Maximum Depth of Cut (Decimal Inch) | 0.394" |
| Maximum Depth of Cut (mm) | 10.00mm |
| Maximum Cutting Depth (Decimal Inch) | 4.390" |
| Maximum Cutting Depth (mm) | 111.50mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 5300 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | LNK.0504 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

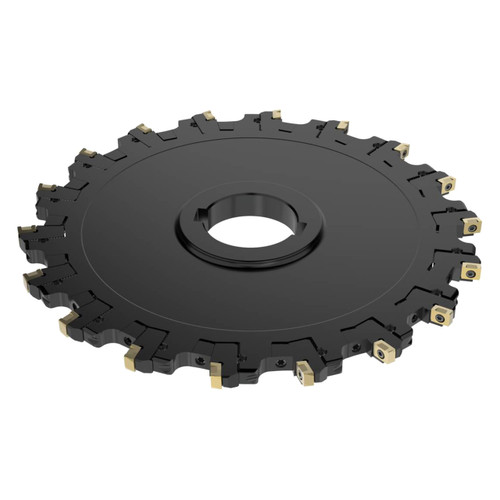

| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Depth of Cut (Inch):
37/94"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Cutter Diameter (Inch):
304-4/5"
Cutter Diameter (Decimal Inch):
12.0000"
Cutter Diameter (mm):
304.80mm
