Product Specifications
| Manufacturer Part Number | 02880957 |
| Cutting Diameter (Decimal Inch) | 0.394" |
| Cutting Diameter (mm) | 10.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.378" |
| Contact Surface Diameter Machine Side (mm) | 9.60mm |
| Maximum Depth of Cut (Decimal Inch) | 0.181" |
| Maximum Depth of Cut (mm) | 4.60mm |
| Corner Chamfer Width (Decimal Inch) | 0.185" |
| Corner Chamfer Width (mm) | 4.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.280" |
| Cutting Edge Effective Length (mm) | 7.10mm |
| Functional Length (Decimal Inch) | 0.630" |
| Functional Length (mm) | 16.00mm |
| Torque (Nm) | 11Nm |
| Cutting Edge Count | 1 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | 6.7 Degree |
| Axial Rake Angle (Degree) | 10 Degree |
| Material | Carbide |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Point Length (Decimal Inch) | 0.181" |
| Point Length (mm) | 4.60mm |
| Point Angle (Degree) | 90 Degree |
| Peripheral Effective Cutting Edge Count | 2 |
| Peripheral Edges In The Tool | 2 |

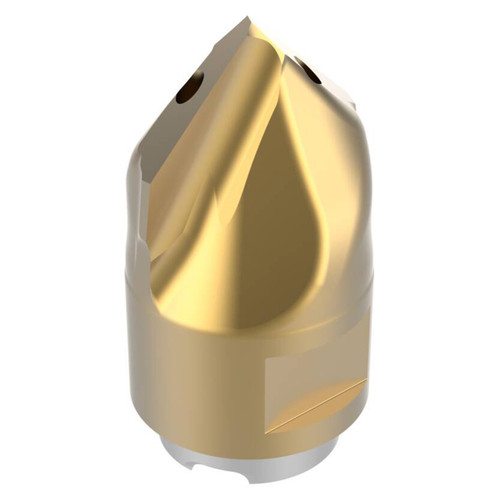

| Product Type | Chamfer Milling Tip Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Decimal Inch):
0.3940"
Cutting Diameter (mm):
10.00mm
interval quantity:
2
