Product Specifications
| Manufacturer Part Number | 03029534 |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 3.937" |
| Connection Diameter Machine Side (mm) | 100.00mm |
| Shank Diameter (Decimal Inch) | 3.937" |
| Shank Diameter (mm) | 100.00mm |
| Body Length (Decimal Inch) | 13.347" |
| Body Length (mm) | 339.00mm |
| Body Length 1 (Decimal Inch) | 13.347" |
| Body Length 1 (mm) | 339.00mm |
| Body Length 2 (Decimal Inch) | 13.150" |
| Body Length 2 (mm) | 334.00mm |
| Functional Length (Decimal Inch) | 14.488" |
| Functional Length (mm) | 368.00mm |
| Shank Length (Decimal Inch) | 1.969" |
| Shank Length (mm) | 50.00mm |
| Overall Length (Decimal Inch) | 16.748" |
| Overall Length (mm) | 425.40mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 4000 rpm |

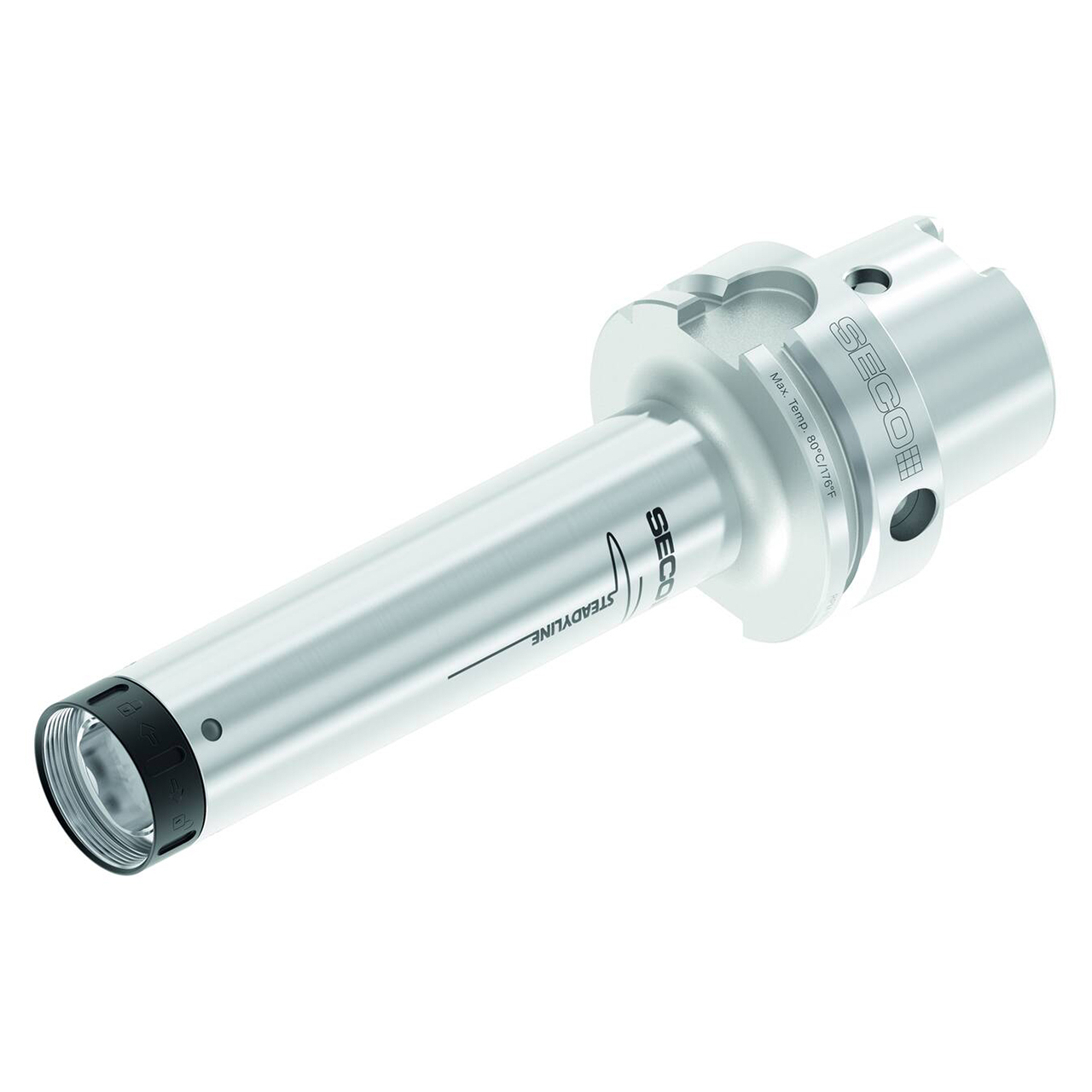

| Product Type | Collet Chuck Extension Adapter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-31/32"
Body Diameter (Decimal Inch):
1.9690"
Body Diameter (mm):
50.00mm
Overall Length (Inch):
16-3/4"
Overall Length (Decimal Inch):
16.7480"
Overall Length (mm):
425.40mm
