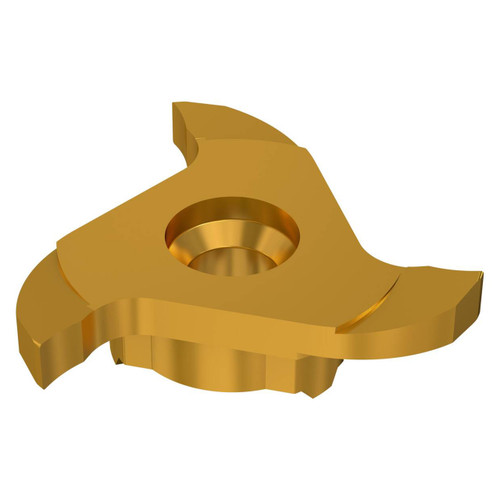

Seco Tools 03041935 | R335.14-277400.14Z3-M03 27.70mm Diameter x 0.20mm Corner Radius x 90 Degree Cutting Edge Angle PVD Coated Carbide T-Slot Milling Tip Insert

$95.40 $76.32
(You save $19.08)
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Inch):
1-1/11"
Cutting Diameter (Decimal Inch):
1.0906"
Cutting Diameter (mm):
27.70mm
interval quantity:
2
SKU:
23284550
UPC:
Weight:
0.03 LBS
Minimum Purchase:
2 units
Shipping:
Calculated at Checkout
Seco Tools 03041935 | R335.14-277400.14Z3-M03 27.70mm Diameter x 0.20mm Corner Radius x 90 Degree Cutting Edge Angle PVD Coated Carbide T-Slot Milling Tip Insert

Product Specifications
Manufacturer Part Number03041935
Cutting Diameter (Decimal Inch)1.091"
Cutting Diameter (mm)27.70mm
Contact Surface Diameter Machine Side (Decimal Inch)0.551"
Contact Surface Diameter Machine Side (mm)14.00mm
Functional Length (Decimal Inch)0.256"
Functional Length (mm)6.50mm
Cutting Width (Decimal Inch)0.158"
Cutting Width (mm)4.00mm
Maximum Cutting Depth (Decimal Inch)0.256"
Maximum Cutting Depth (mm)6.50mm
Maximum Cutting Depth Insert (Decimal Inch)0.256"
Maximum Cutting Depth Insert (mm)6.50mm
Corner Radius (Decimal Inch)0.008"
Corner Radius (mm)0.20mm
Cutting Edge Count1
Tool Cutting Edge Angle (Degree)90 Degree
Insert Rake Angle (Degree)15 Degree
Cutting DirectionRight Hand
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM03
MaterialCarbide
Product TypeT-Slot Milling Tip Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
