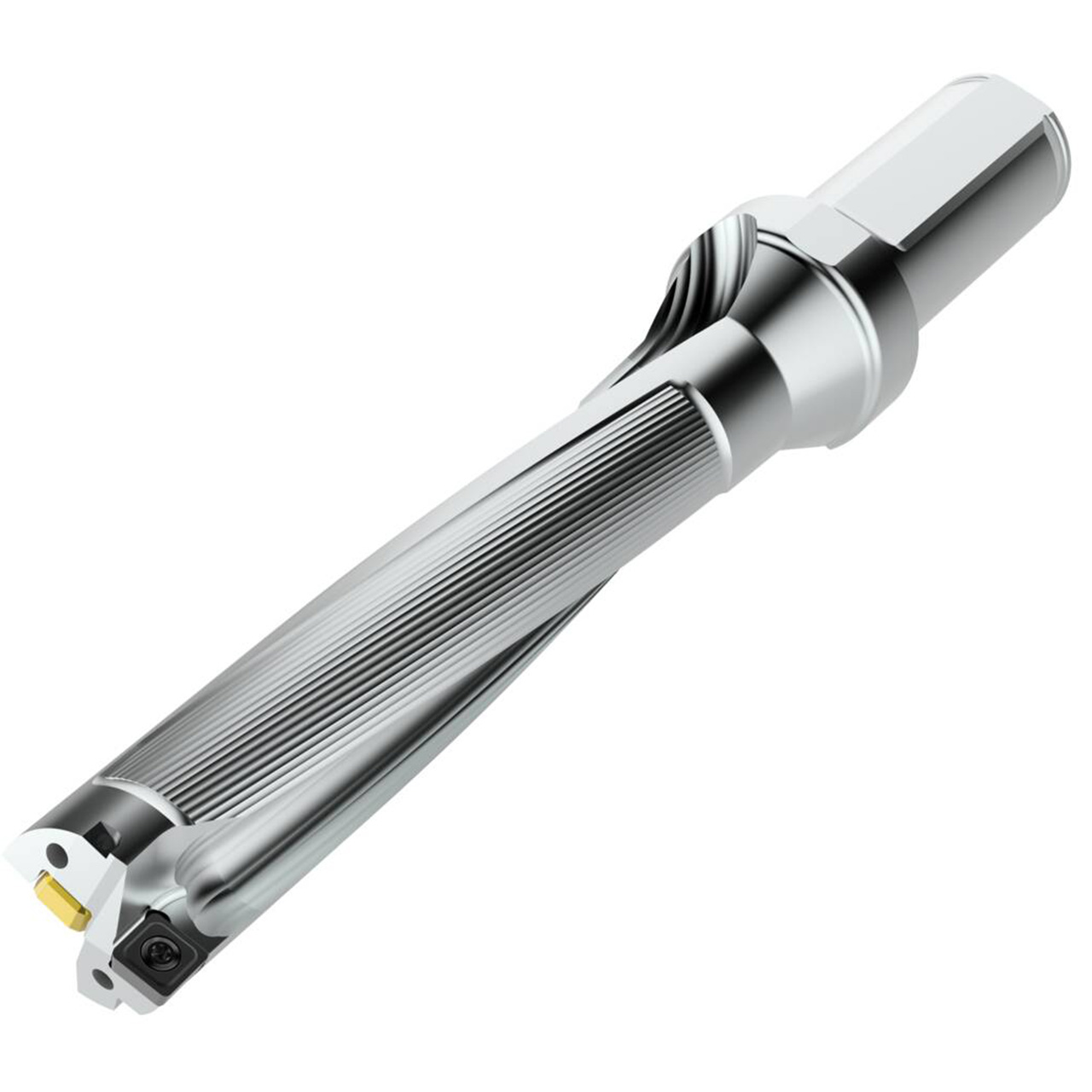

Seco Tools 03079578 | 1.875" Diameter x 1.500" Shank x 13.176" OAL 88 Degree Cutting Edge Angle Indexable Insert Drill

$1,260.00 $1,222.20
(You save $37.80)
Brand:
Seco Tools
Drill Diameter (Inch):
1-7/8"
Drill Diameter (Decimal Inch):
1.8752"
Drill Diameter (mm):
47.63mm
Shank Diameter (Inch):
1-1/2"
Shank Diameter (Decimal Inch):
1.5000"
Shank Diameter (mm):
38.10mm
interval quantity:
1
SKU:
23284914
UPC:
Weight:
5.37 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Seco Tools 03079578 | 1.875" Diameter x 1.500" Shank x 13.176" OAL 88 Degree Cutting Edge Angle Indexable Insert Drill

Product Specifications
Manufacturer Part Number03079578
Cutting Diameter (Decimal Inch)1.875"
Cutting Diameter (mm)47.63mm
Connection Diameter Machine Side (Decimal Inch)1.500"
Connection Diameter Machine Side (mm)38.10mm
Flange Diameter (Decimal Inch)1.969"
Flange Diameter (mm)50.00mm
Shank Diameter (Decimal Inch)1.500"
Shank Diameter (mm)38.10mm
Shank Length (Decimal Inch)2.625"
Shank Length (mm)66.68mm
Usable Length (Decimal Inch)9.370"
Usable Length (mm)238.00mm
Overall Length (Decimal Inch)13.176"
Overall Length (mm)334.68mm
Adjustment Limit Minimum (Decimal Inch)0.009"
Adjustment Limit Minimum (mm)0.22mm
Adjustment Limit Maximum (Decimal Inch)0.012"
Adjustment Limit Maximum (mm)0.31mm
Coolant Entry Style Code1
Coolant Supply Property1
Coolant Exit Style Code3
Tool Cutting Edge Angle (Degree)88 Degree
Product TypeIndexable Insert Drill
