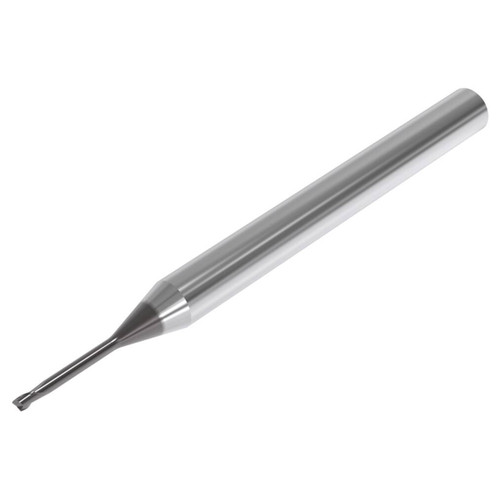

Seco Tools 03171116 | 2.00mm Diameter x 4.00mm Shank x 0.15mm Radius x 60.00mm OAL 2 Flute 30 Degree Helix Angle SIRON-A Coated Carbide Corner Radius End Mill

$94.94
Brand:
Seco Tools
Mill Diameter (Inch):
7/89"
Mill Diameter (Decimal Inch):
0.0787"
Mill Diameter (mm):
2.00mm
Number of Flutes:
2
Corner Radius (Decimal Inch):
0.0059"
Corner Radius (mm):
0.15mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
SIRON-A
Shank Diameter (Inch):
3/19"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Overall Length (Inch):
2-21/58"
Overall Length (Decimal Inch):
2.3622"
Overall Length (mm):
60.00mm
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25272641
Weight:
0.02 LBS
Shipping:
Free Shipping
Seco Tools 03171116 | 2.00mm Diameter x 4.00mm Shank x 0.15mm Radius x 60.00mm OAL 2 Flute 30 Degree Helix Angle SIRON-A Coated Carbide Corner Radius End Mill

Product Specifications
Manufacturer Part Number03171116
Cutting Diameter (mm)2.00mm
Cutting Diameter 1 (mm)2.00mm
Connection Diameter Machine Side (mm)4.00mm
Shank Diameter (mm)4.00mm
Neck Diameter (mm)1.94mm
Maximum Helical Interpolation Hole Diameter (mm)3.69mm
Minimum Helical Interpolation Hole Diameter (mm)2.60mm
Overall Length (mm)60.00mm
Neck Length (mm)20.00mm
Neck Length 1 (mm)20.00mm
Cutting Edge Effective Length (mm)3.00mm
Maximum Depth of Cut (mm)3.00mm
Corner Radius (mm)0.15mm
Shank TypeCylindrical
Collision Angle (Degree)2.41 Degree
Center Cutting CapabilityYes
Cutting Edge Count2
Cutting Geometry TypeJME542
Cutting Geometry Type TechnicalJME542
Face Cutting Edge Count2
Flute Helix Angle (Degree)30 Degree
Flute Helix DirectionRight
Rake Radial Angle (Degree)3 Degree
Axial Rake Angle (Degree)30 Degree
Cutting DirectionRight Hand
Internal Coolant ChannelNo
Tool Cutting Edge Angle (Degree)90 Degree
Number of Flute2
MaterialCarbide
CoatingSIRON-A
Product TypeCorner Radius End Mill
