Seco Tools 03197132 | CAT40ADB-SM1.000-2.250-L1 57.15mm Diameter x 25.40mm Shank x 142.85mm OAL Shell Mill Holder - All Industrial Tool Supply

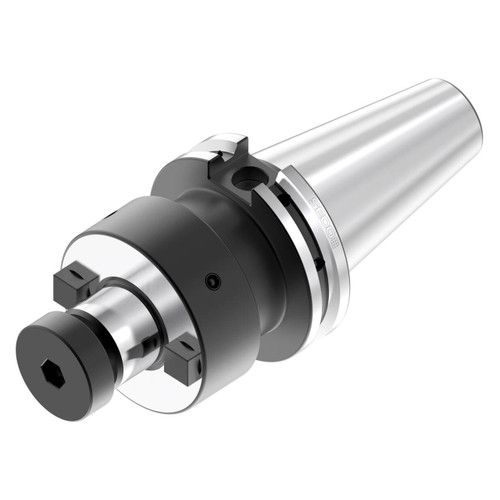

Seco Tools 03197132 | CAT40ADB-SM1.000-2.250-L1 57.15mm Diameter x 25.40mm Shank x 142.85mm OAL Shell Mill Holder

$135.93
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
SKU:
55075084
Weight:
3.40 LBS
Shipping:
Free Shipping
Seco Tools 03197132 | CAT40ADB-SM1.000-2.250-L1 57.15mm Diameter x 25.40mm Shank x 142.85mm OAL Shell Mill Holder

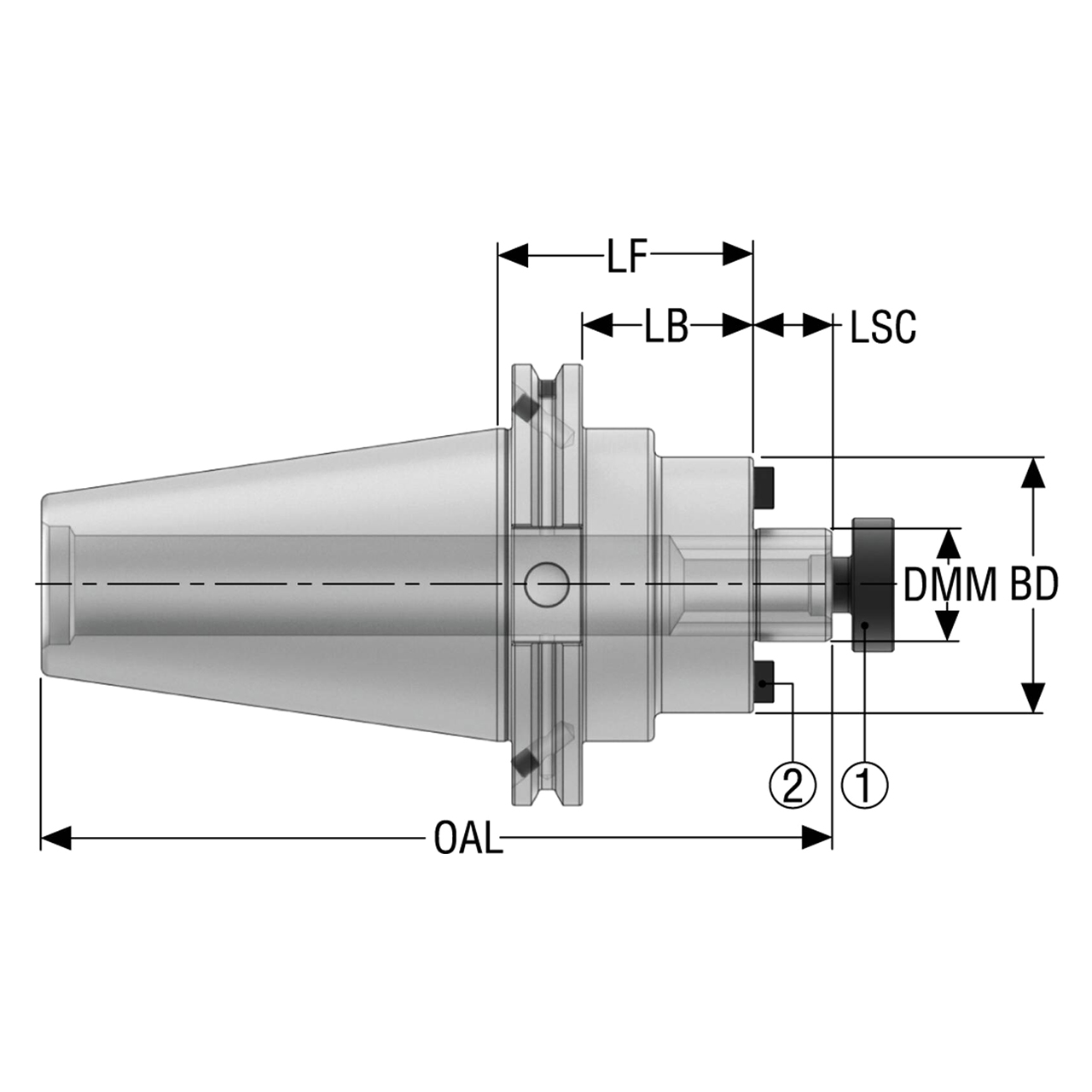

Product Specifications
Manufacturer Part Number03197132
Body Diameter (Decimal Inch)2.250"
Body Diameter (mm)57.15mm
Shank Diameter (Decimal Inch)1.000"
Shank Diameter (mm)25.40mm
Body Length (Decimal Inch)1.500"
Body Length (mm)38.10mm
Functional Length (Decimal Inch)2.250"
Functional Length (mm)57.15mm
Clamping Length (Decimal Inch)0.687"
Clamping Length (mm)17.45mm
Overall Length (Decimal Inch)5.624"
Overall Length (mm)142.85mm
Data Chip Provision1
Maximum Rotational Speed (rpm)18000 rpm
Product TypeShell Mill Holder

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
