Product Specifications
| Manufacturer Part Number | 03212088 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.398" |
| Contact Surface Diameter Machine Side (mm) | 35.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.776" |
| Minimum Helical Interpolation Hole Diameter (mm) | 70.50mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.961" |
| Maximum Helical Interpolation Hole Diameter (mm) | 75.20mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.295" |
| Maximum Depth of Cut (mm) | 7.50mm |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -15.2 Degree |
| Rake Orthogonal Angle (Degree) | -15.2 Degree |
| Maximum Rotational Speed (rpm) | 20700 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XNEX0806 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Combimaster |

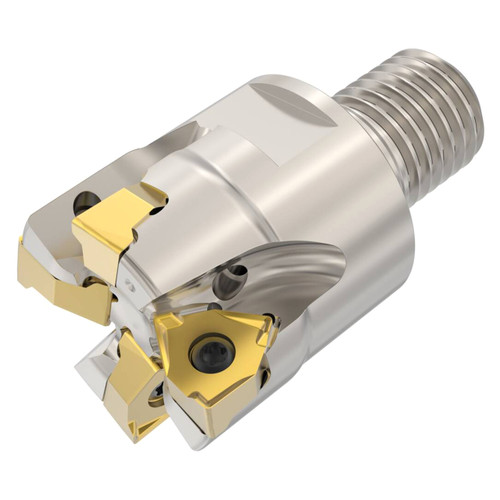

| Product Type | Indexable Square-Shoulder End Mill |
