Product Specifications
| Manufacturer Part Number | 03214277 |
| Body Diameter (Decimal Inch) | 0.984" |
| Body Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 2.480" |
| Connection Diameter Machine Side (mm) | 63.00mm |
| Shank Diameter (Decimal Inch) | 2.480" |
| Shank Diameter (mm) | 63.00mm |
| Thread Diameter Size | - |
| Body Length (Decimal Inch) | 4.134" |
| Body Length (mm) | 105.00mm |
| Body Length 1 (Decimal Inch) | 4.134" |
| Body Length 1 (mm) | 105.00mm |
| Body Length 2 (Decimal Inch) | 4.016" |
| Body Length 2 (mm) | 102.00mm |
| Functional Length (Decimal Inch) | 5.118" |
| Functional Length (mm) | 130.00mm |
| Shank Length (Decimal Inch) | 1.496" |
| Shank Length (mm) | 38.00mm |
| Overall Length (Decimal Inch) | 6.791" |
| Overall Length (mm) | 172.50mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 10000 rpm |

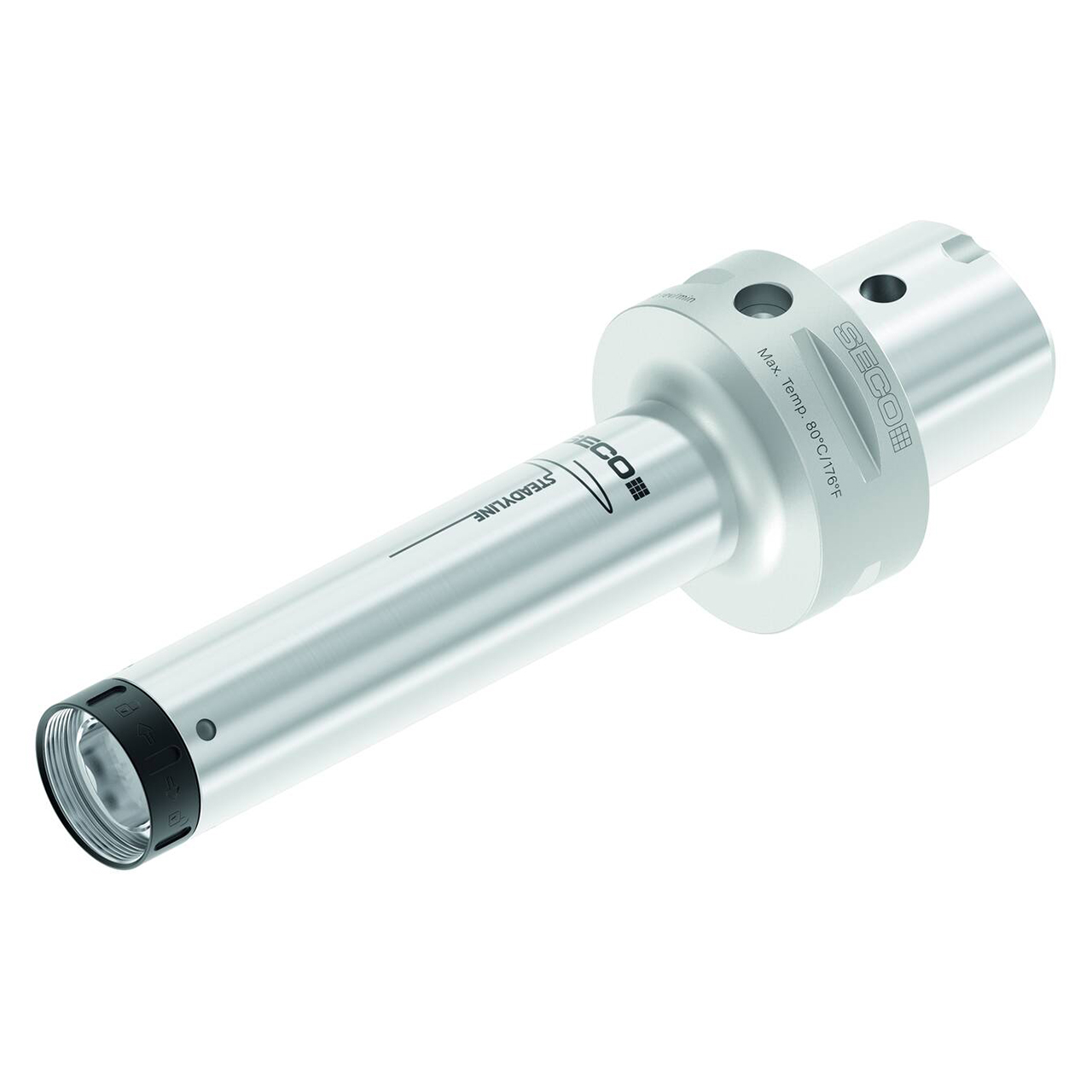

| Product Type | Collet Chuck Extension Adapter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
63/64"
Body Diameter (Decimal Inch):
0.9840"
Body Diameter (mm):
25.00mm
Overall Length (Inch):
6-53/67"
Overall Length (Decimal Inch):
6.7910"
Overall Length (mm):
172.50mm
interval quantity:
1
