Seco Tools 03301597 | HSKA100-SM40-160-L1 89.00mm Diameter x 40.00mm Shank x 237.00mm OAL Shell Mill Holder

$525.00 $362.25
(You save $162.75)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
interval quantity:
1
SKU:
55075757
UPC:
Weight:
18.65 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Seco Tools 03301597 | HSKA100-SM40-160-L1 89.00mm Diameter x 40.00mm Shank x 237.00mm OAL Shell Mill Holder

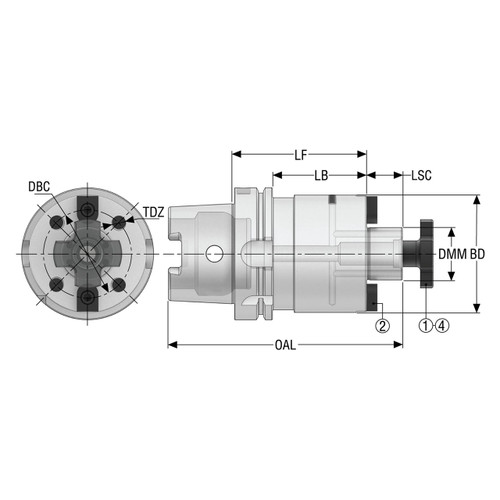

Product Specifications
Manufacturer Part Number03301597
Body Diameter (Decimal Inch)3.504"
Body Diameter (mm)89.00mm
Diameter Bolt Circle (Decimal Inch)2.626"
Diameter Bolt Circle (mm)66.70mm
Connection Diameter Workpiece Side (Decimal Inch)1.575"
Connection Diameter Workpiece Side (mm)40.00mm
Shank Diameter (Decimal Inch)1.575"
Shank Diameter (mm)40.00mm
Thread Diameter SizeM12
Body Length (Decimal Inch)5.158"
Body Length (mm)131.00mm
Functional Length (Decimal Inch)6.299"
Functional Length (mm)160.00mm
Clamping Length (Decimal Inch)1.063"
Clamping Length (mm)27.00mm
Overall Length (Decimal Inch)9.331"
Overall Length (mm)237.00mm
Data Chip Provision1
Product TypeShell Mill Holder

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
