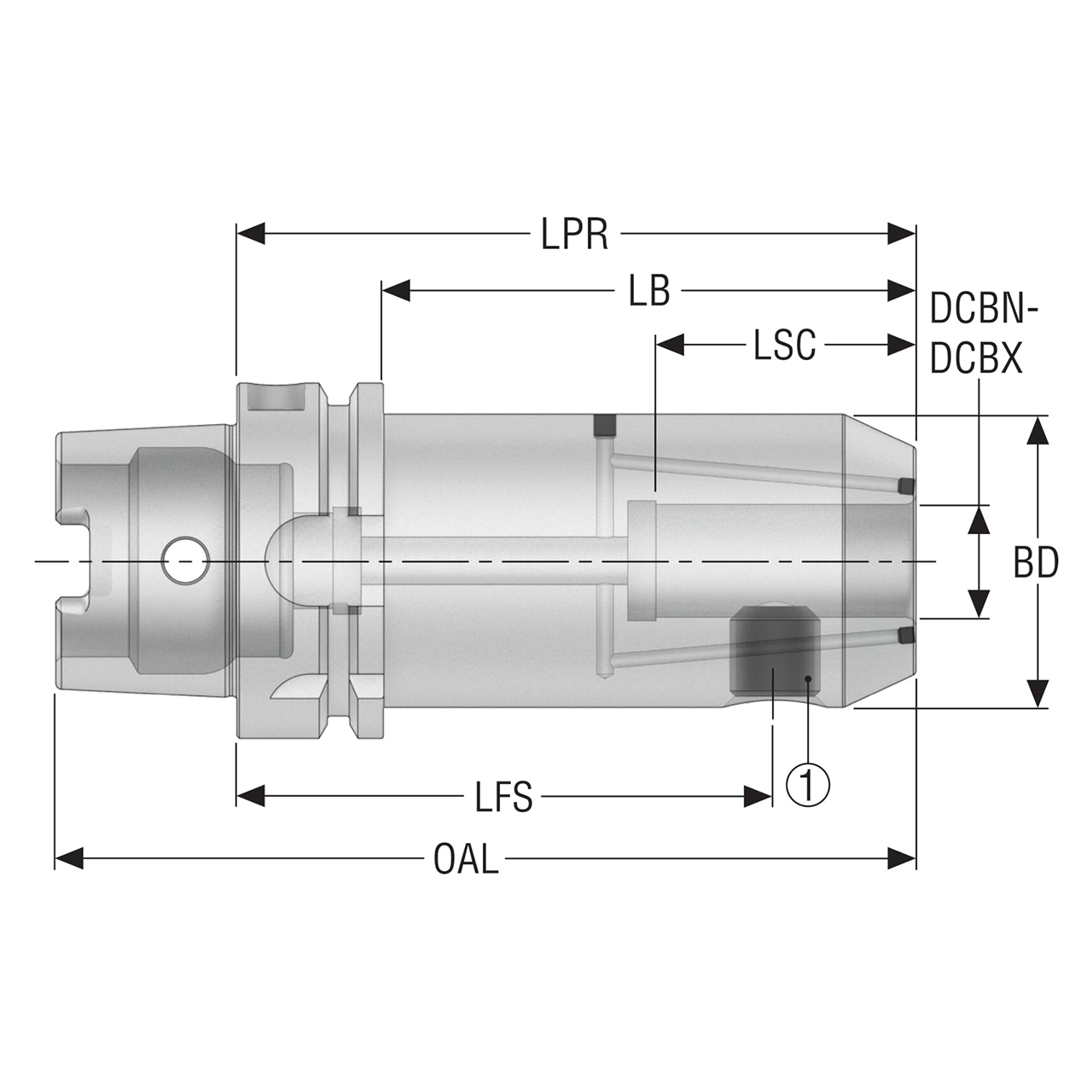

Product Specifications
| Manufacturer Part Number | 03301691 |
| Body Diameter (Decimal Inch) | 1.102" |
| Body Diameter (mm) | 28.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Minimum Connection Bore Diameter (mm) | 8.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Maximum Connection Bore Diameter (mm) | 8.00mm |
| Body Length (Decimal Inch) | 3.701" |
| Body Length (mm) | 94.00mm |
| Functional Length Secondary (Decimal Inch) | 4.016" |
| Functional Length Secondary (mm) | 102.00mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Clamping Length (Decimal Inch) | 1.260" |
| Clamping Length (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 5.984" |
| Overall Length (mm) | 152.00mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Decimal Inch):
1.1020"
Body Diameter (mm):
28.00mm
Overall Length (Decimal Inch):
5.9840"
Overall Length (mm):
152.00mm
