Seco Tools 03305475 | MTS-1/4-19G-XC-K121 G1/4-19 Thread Size x 0.518" Diameter x 0.433" Shank x 3.937" OAL 4 Flute TIALN Coated HSS-E-PM Straight Flute Tap

$70.38
Brand:
Seco Tools
Thread Size:
G1/4-19
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
TiAlN
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
interval quantity:
1
SKU:
17993677
Weight:
0.14 LBS
Shipping:
Calculated at Checkout
Seco Tools 03305475 | MTS-1/4-19G-XC-K121 G1/4-19 Thread Size x 0.518" Diameter x 0.433" Shank x 3.937" OAL 4 Flute TIALN Coated HSS-E-PM Straight Flute Tap

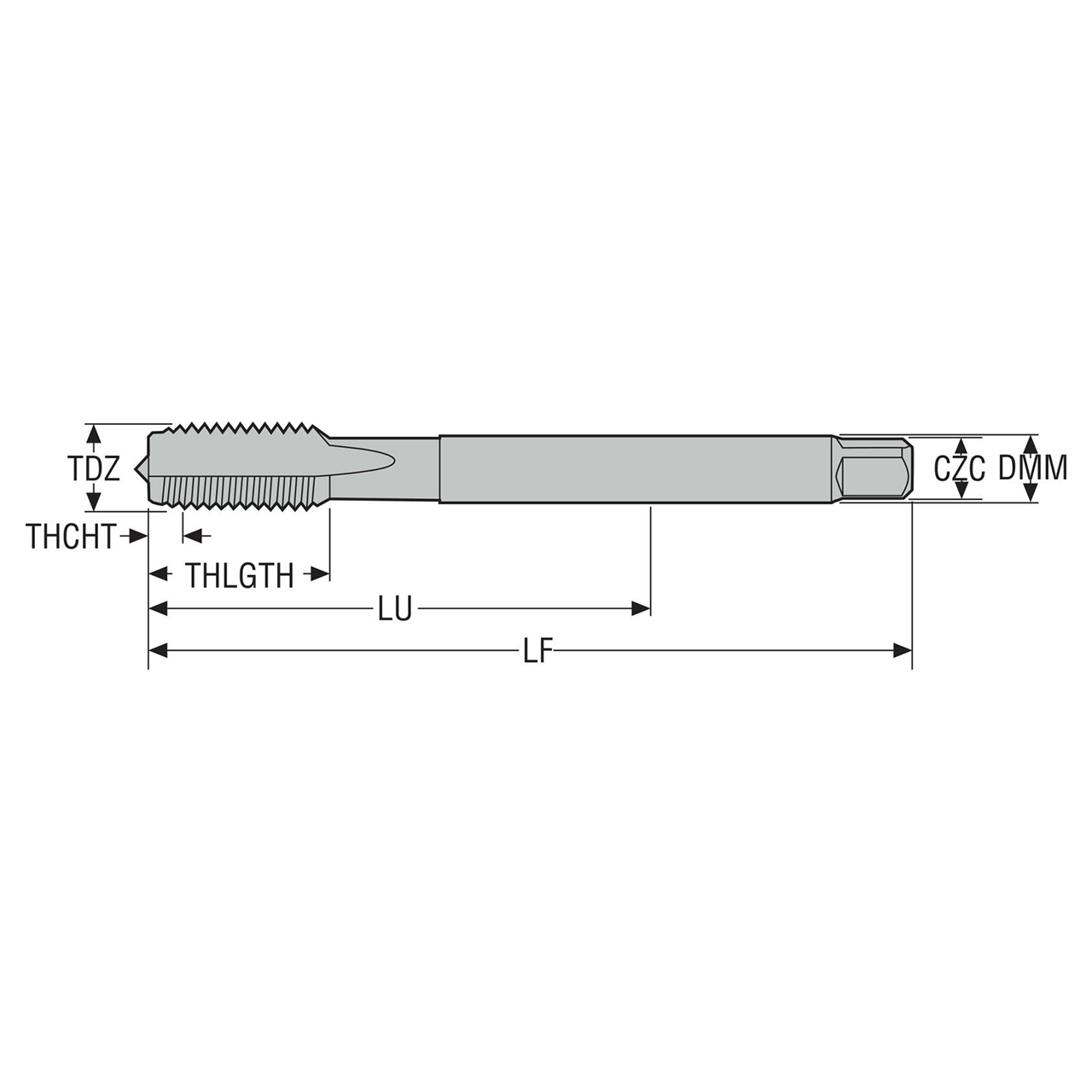

Product Specifications
Manufacturer Part Number03305475
Thread Diameter (Decimal Inch)0.518"
Thread Diameter (mm)13.16mm
Threading Chamfer Length (Decimal Inch)0.145"
Threading Chamfer Length (mm)3.68mm
Tap Chamfer Length (Decimal Inch)0.145"
Tap Chamfer Length (mm)3.68mm
Connection Diameter Machine Side (Decimal Inch)0.433"
Connection Diameter Machine Side (mm)11.00mm
Shank Diameter (Decimal Inch)0.433"
Shank Diameter (mm)11.00mm
Functional Length (Decimal Inch)3.792"
Functional Length (mm)96.32mm
Usable Length (Decimal Inch)2.795"
Usable Length (mm)71.00mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.591"
Thread Length (mm)15.00mm
Thread Diameter SizeG1/4-19
Recommended Premachined Hole Diameter (Decimal Inch)0.465"
Recommended Premachined Hole Diameter (mm)11.80mm
Connection Size Code11.00X9.00
Connection Size Code Machine Side11.00X9.00
Maximum Premachined Hole Diameter (Decimal Inch)0.468"
Maximum Premachined Hole Diameter (mm)11.89mm
Minimum Threads Per Inch (mm)19.00mm
Maximum Threads Per Inch (mm)19.00mm
Number of Flute4
Shank TypeCylindrical
Thread Tolerance ClassNormal-X
Threading Chamfer TypeC
Thread Form TypeG
Cutting DirectionRight Hand
Cutting Geometry TypeISO-K
Cutting Geometry Type TechnicalStraight
MaterialHSS-E-PM
CoatingTIALN
Product TypeBritish Standard Pipe Tap
