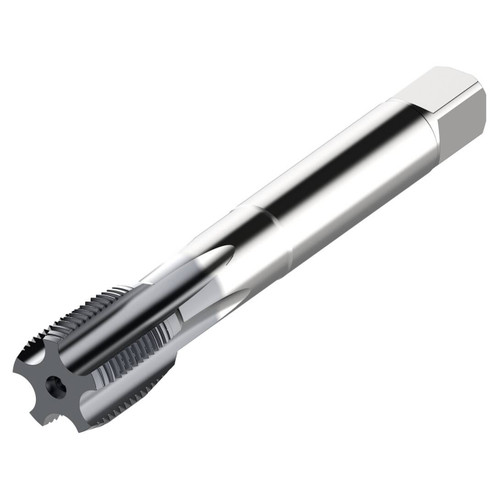

Seco Tools 03305483 | MTS-7/16-14UNC-XC-K131 UNC7/16-14 Thread Size x 0.438" Diameter x 0.315" Shank x 3.937" OAL 5 Flute TIALN Coated HSS-E-PM Straight Flute Tap

$152.00 $104.88
(You save $47.12)
Brand:
Seco Tools
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Number of Flutes:
5
Material:
HSS-E-PM
Finish/Coating:
TIALN
Thread Standard:
UNC
interval quantity:
1
SKU:
17993685
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03305483 | MTS-7/16-14UNC-XC-K131 UNC7/16-14 Thread Size x 0.438" Diameter x 0.315" Shank x 3.937" OAL 5 Flute TIALN Coated HSS-E-PM Straight Flute Tap

Product Specifications
Manufacturer Part Number03305483
Thread Diameter (Decimal Inch)0.438"
Thread Diameter (mm)11.11mm
Threading Chamfer Length (Decimal Inch)0.197"
Threading Chamfer Length (mm)4.99mm
Tap Chamfer Length (Decimal Inch)0.196"
Tap Chamfer Length (mm)4.99mm
Connection Diameter Machine Side (Decimal Inch)0.315"
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Functional Length (Decimal Inch)3.741"
Functional Length (mm)95.01mm
Usable Length (Decimal Inch)2.862"
Usable Length (mm)72.70mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.787"
Thread Length (mm)20.00mm
Thread Diameter SizeUNC7/16-14
Recommended Premachined Hole Diameter (Decimal Inch)0.370"
Recommended Premachined Hole Diameter (mm)9.40mm
Connection Size Code9.25X6.20
Connection Size Code Machine Side9.25X6.20
Maximum Premachined Hole Diameter (Decimal Inch)0.376"
Maximum Premachined Hole Diameter (mm)9.55mm
Minimum Threads Per Inch (mm)14.00mm
Maximum Threads Per Inch (mm)14.00mm
Number of Flute5
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeC
Thread Form TypeUNC
Cutting DirectionRight Hand
Cutting Geometry TypeISO-K
Cutting Geometry Type TechnicalStraight
MaterialHSS-E-PM
CoatingTIALN
Product TypeStraight Flute Tap
