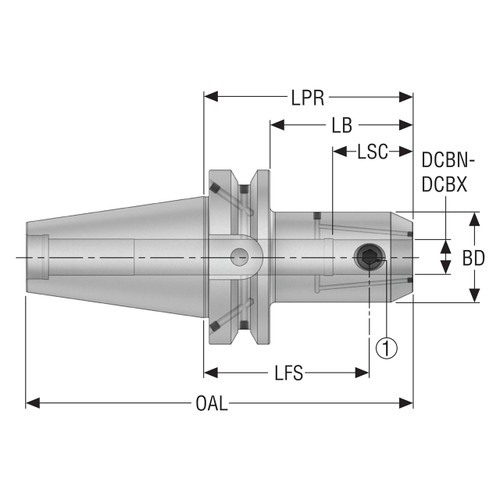

Product Specifications
| Manufacturer Part Number | 10007211 |
| Body Diameter (Decimal Inch) | 1.654" |
| Body Diameter (mm) | 42.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Minimum Connection Bore Diameter (mm) | 12.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Maximum Connection Bore Diameter (mm) | 12.00mm |
| Body Length (Decimal Inch) | 3.661" |
| Body Length (mm) | 93.00mm |
| Functional Length Secondary (Decimal Inch) | 3.839" |
| Functional Length Secondary (mm) | 97.50mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Clamping Length (Decimal Inch) | 1.614" |
| Clamping Length (mm) | 41.00mm |
| Overall Length (Decimal Inch) | 7.299" |
| Overall Length (mm) | 185.40mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-17/26"
Body Diameter (Decimal Inch):
1.6540"
Body Diameter (mm):
42.00mm
Overall Length (Inch):
7-29/97"
Overall Length (Decimal Inch):
7.2990"
Overall Length (mm):
185.40mm
interval quantity:
1
