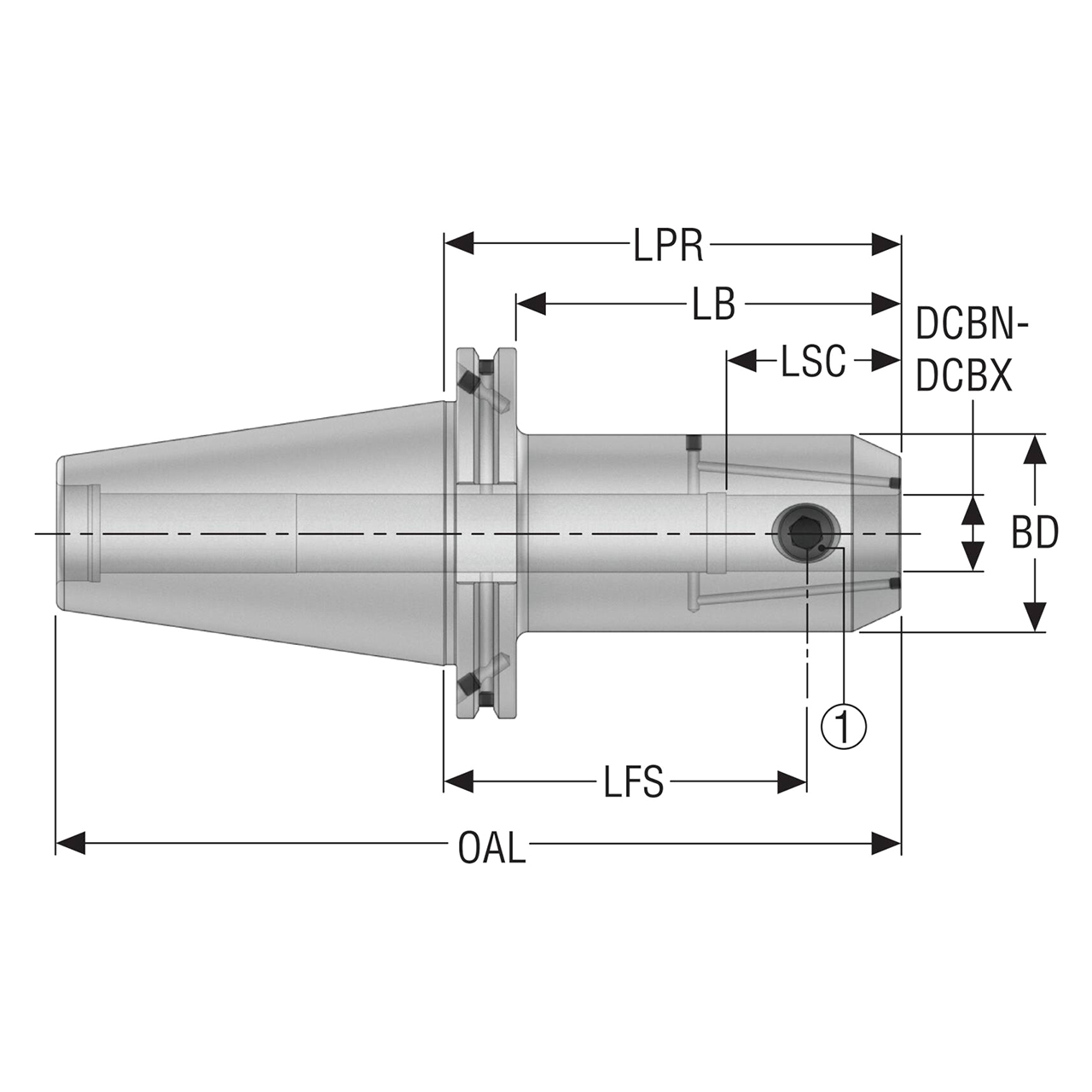

Product Specifications
| Manufacturer Part Number | 10007255 |
| Body Diameter (Decimal Inch) | 1.102" |
| Body Diameter (mm) | 28.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Minimum Connection Bore Diameter (mm) | 8.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Maximum Connection Bore Diameter (mm) | 8.00mm |
| Body Length (Decimal Inch) | 1.728" |
| Body Length (mm) | 43.90mm |
| Functional Length Secondary (Decimal Inch) | 1.772" |
| Functional Length Secondary (mm) | 45.00mm |
| Protruding Length (Decimal Inch) | 2.480" |
| Protruding Length (mm) | 63.00mm |
| Clamping Length (Decimal Inch) | 1.378" |
| Clamping Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 6.486" |
| Overall Length (mm) | 164.75mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-5/49"
Body Diameter (Decimal Inch):
1.1020"
Body Diameter (mm):
28.00mm
Overall Length (Inch):
6-35/72"
Overall Length (Decimal Inch):
6.4860"
Overall Length (mm):
164.75mm
interval quantity:
1
