Product Specifications
| Manufacturer Part Number | 10067019 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.284" |
| Contact Surface Diameter Machine Side (mm) | 58.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 4.911" |
| Maximum Helical Interpolation Hole Diameter (mm) | 124.75mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 4.348" |
| Minimum Helical Interpolation Hole Diameter (mm) | 110.44mm |
| Functional Length (Decimal Inch) | 2.750" |
| Functional Length (mm) | 69.85mm |
| Maximum Depth of Cut (mm) | 43.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.693" |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Orthogonal Angle (Degree) | -7 Degree |
| Axial Rake Angle (Degree) | 9 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 4 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Maximum Rotational Speed (rpm) | 10500 rpm |
| Insert Shape Code | X |
| Shank Type | Arbor |

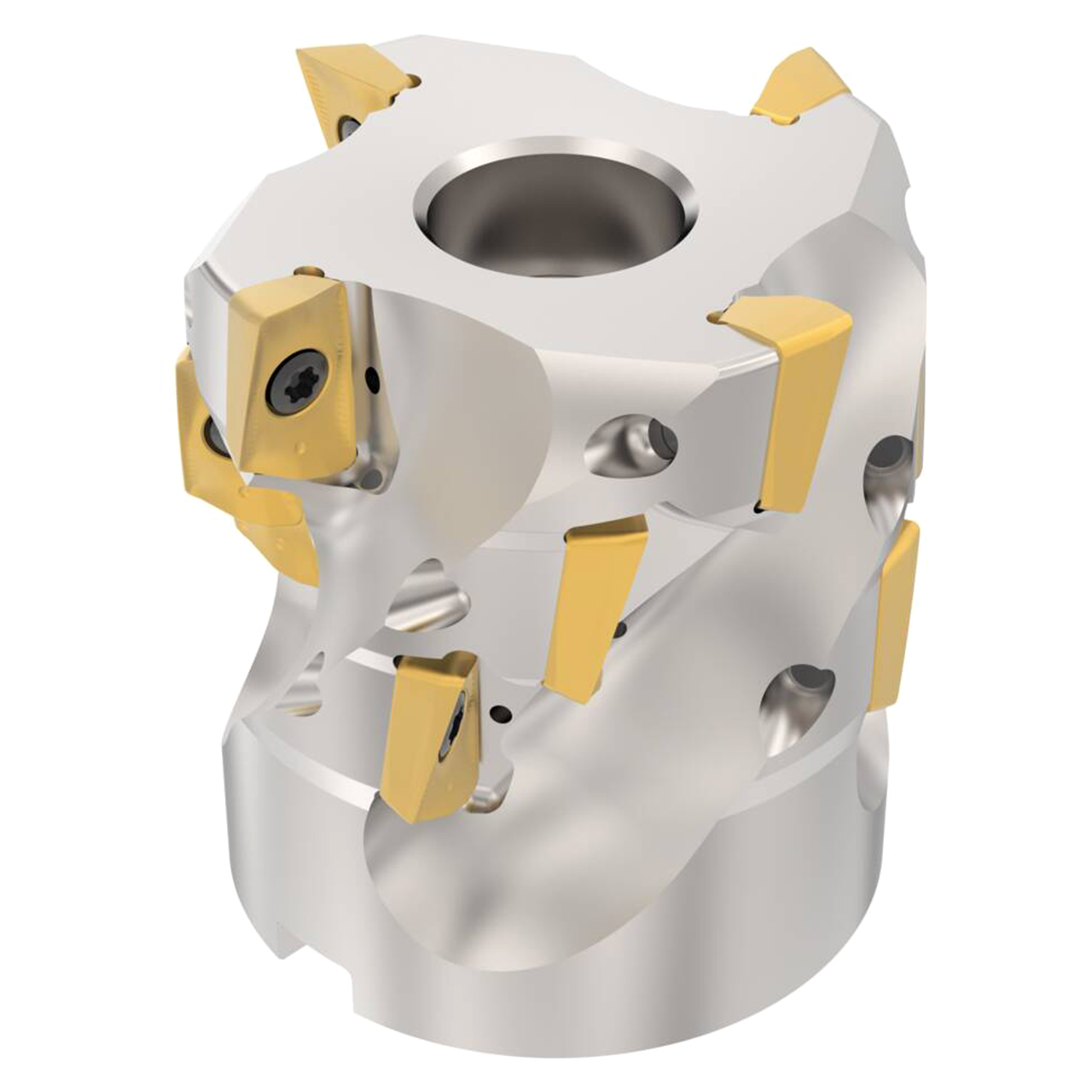

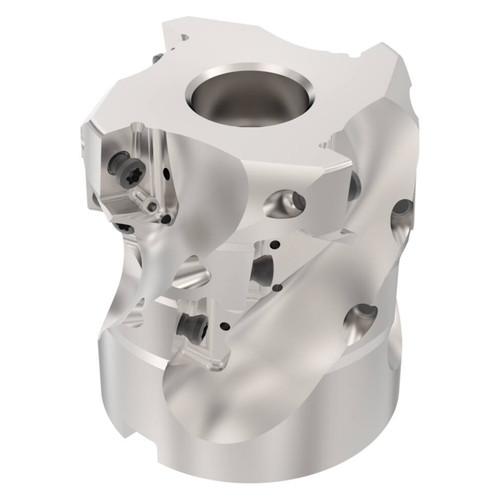

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-1/2"
Cutting Diameter (Decimal Inch):
2.5000"
Cutting Diameter (mm):
63.50mm
Shank Type:
Arbor
