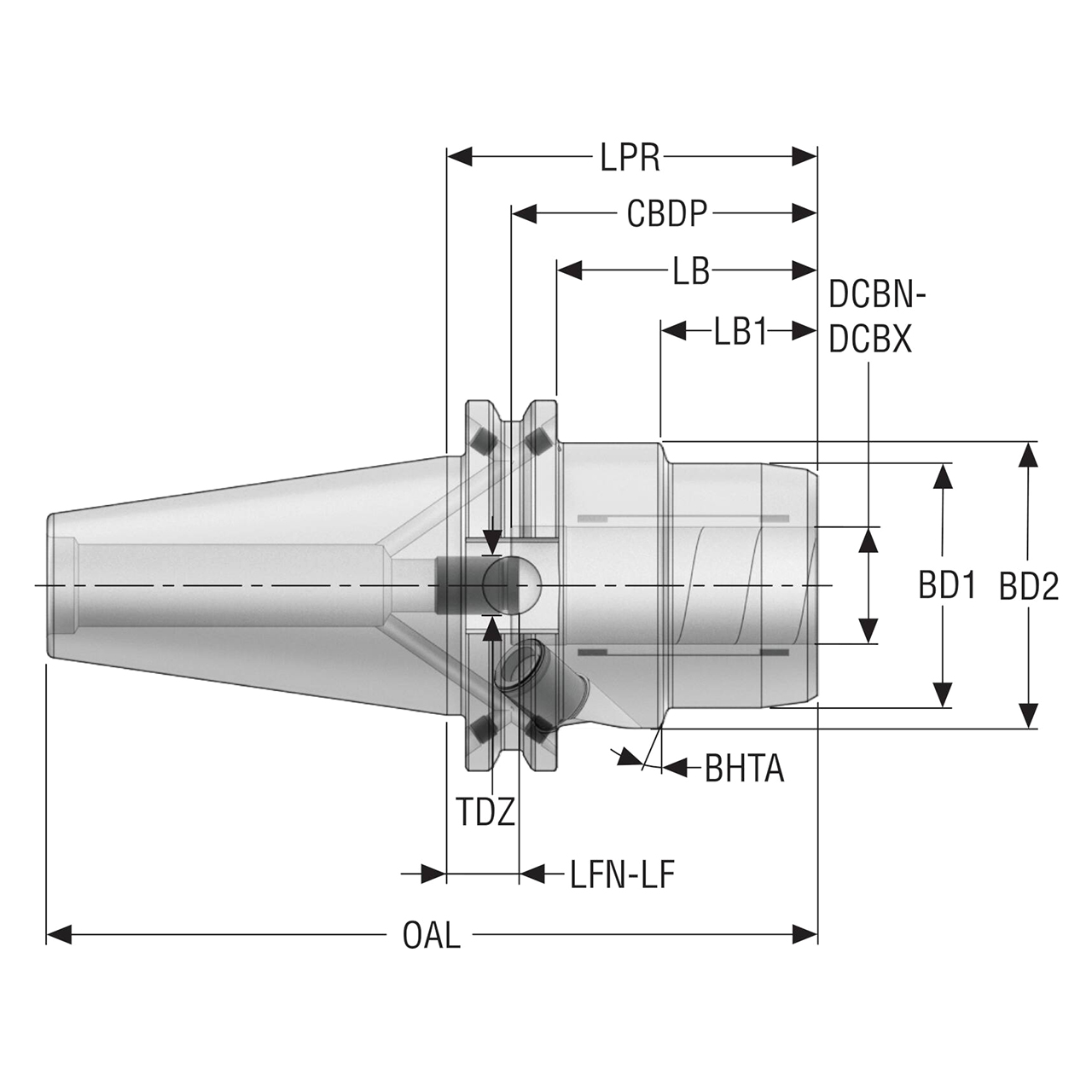

Product Specifications
| Manufacturer Part Number | 10137283 |
| Connection Bore Diameter (Decimal Inch) | 0.394" |
| Connection Bore Diameter (mm) | 10.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Diameter 1 (Decimal Inch) | 1.181" |
| Body Diameter 1 (mm) | 30.00mm |
| Body Diameter 2 (Decimal Inch) | 1.929" |
| Body Diameter 2 (mm) | 49.00mm |
| Thread Diameter Size | M5 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 42.50mm |
| Body Length (Decimal Inch) | 1.750" |
| Body Length (mm) | 44.45mm |
| Body Length 1 (Decimal Inch) | 1.085" |
| Body Length 1 (mm) | 27.56mm |
| Functional Length (Decimal Inch) | 1.280" |
| Functional Length (mm) | 32.50mm |
| Minimum Functional Length (Decimal Inch) | 0.886" |
| Minimum Functional Length (mm) | 22.50mm |
| Protruding Length (Decimal Inch) | 2.500" |
| Protruding Length (mm) | 63.50mm |
| Overall Length (Decimal Inch) | 5.187" |
| Overall Length (mm) | 131.75mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | CAT & CAT Taper-Face |
| Product Type | Hydraulic Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-2/11"
Body Diameter (Decimal Inch):
1.1810"
Body Diameter (mm):
30.00mm
Overall Length (Inch):
5-3/16"
Overall Length (Decimal Inch):
5.1870"
Overall Length (mm):
131.75mm
interval quantity:
1
